SPECIFICATIONS

After-sale Service: Shop's Three Guarantees

Applicable system: Window 7/10/11

Application: For Commercial

Battery Included: No

Brand Name: TOPPARTS

Certification: CE,RoHS,weee

Colors: CMYK+W W

DPI: 1440*1440DPI

Double-sided Printing: No

Feature 1: t shirt printing machine

Feature 2: dtf printing machine

Feature 3: impresora dtf

Feature 4: dtf impresora

Feature 5: dtf a3 printer

Feature 6: printer for t shirt printing

Feature1: PET Film

Feature2: dtf printer for tshirt

Function1: White ink stirring

Function2: White Ink Circulation

Function3: heating

High-concerned chemical: None

Ink consumption: 1sq.m/20ml

Ink output: white and color one pass

Ink supply system: 6colors CISS

Interface Type: USB

Max Paper Size: A3

Max. Resolution: 1200*1200dpi

Model: R1390 DTF

Nozzle: For Epson R1390

Origin: Mainland China

Packing size: 38*84*46cm

Paper Feed Mode: Automatic and manual

Print Speed: 20ppm

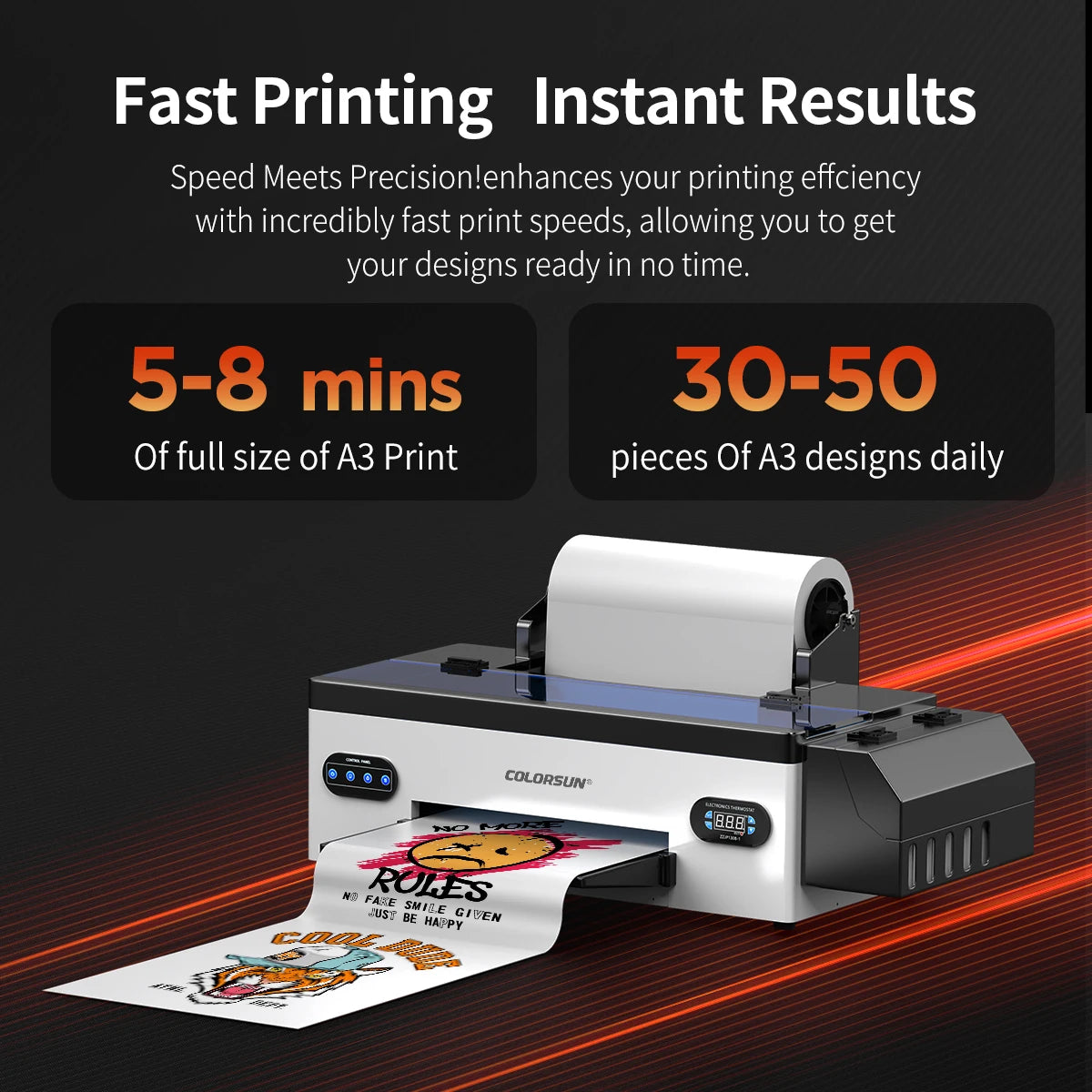

Print speed: 1440dpi/7min

Print width: 297mm

Printing media: leather/textile etc

Printing size: A3

Signal Connection Type: None

Software: RIP11

Supports Network Printing: Wired

Type: Inkjet Printer

Use: DTF printer for clothes

Voltage: 100-240V

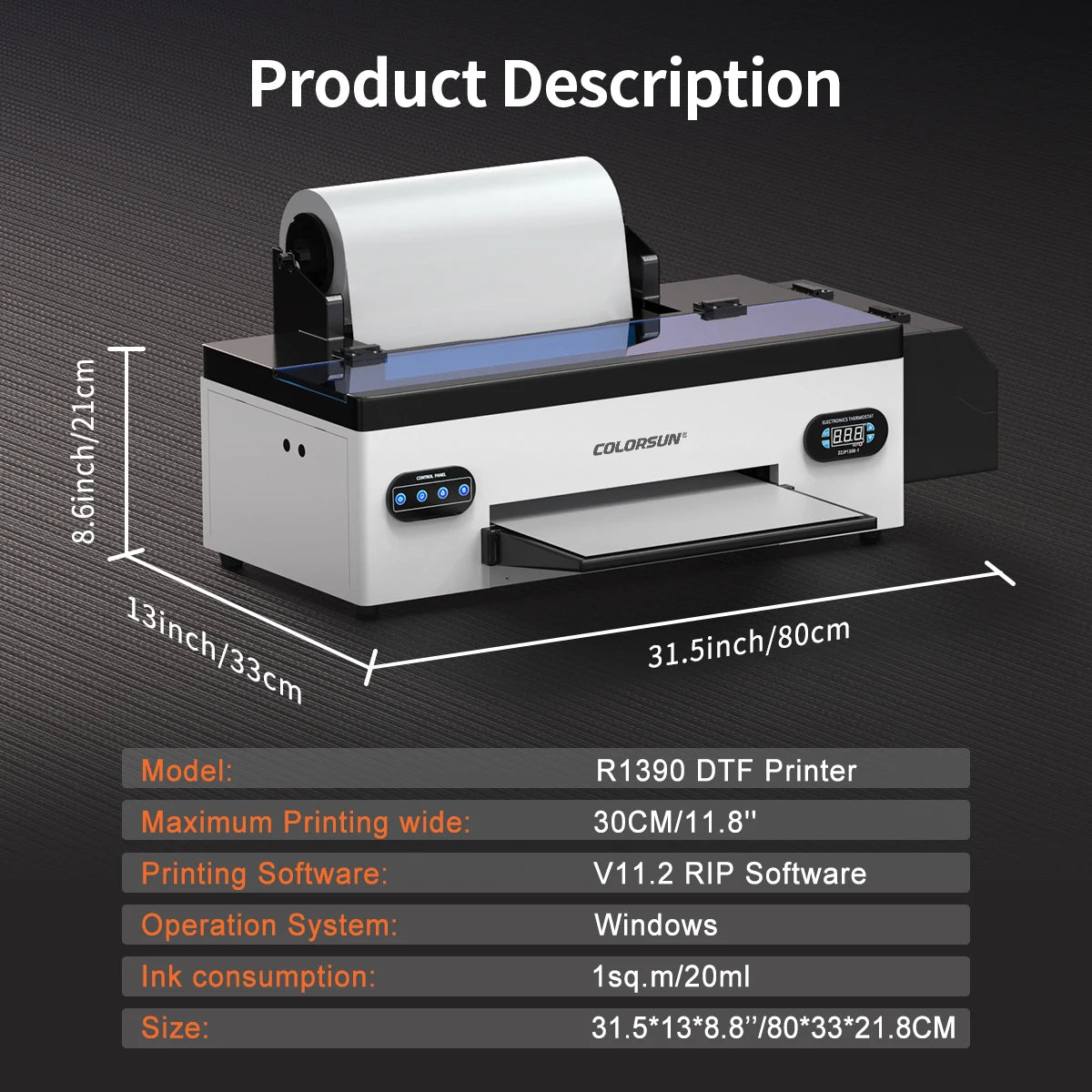

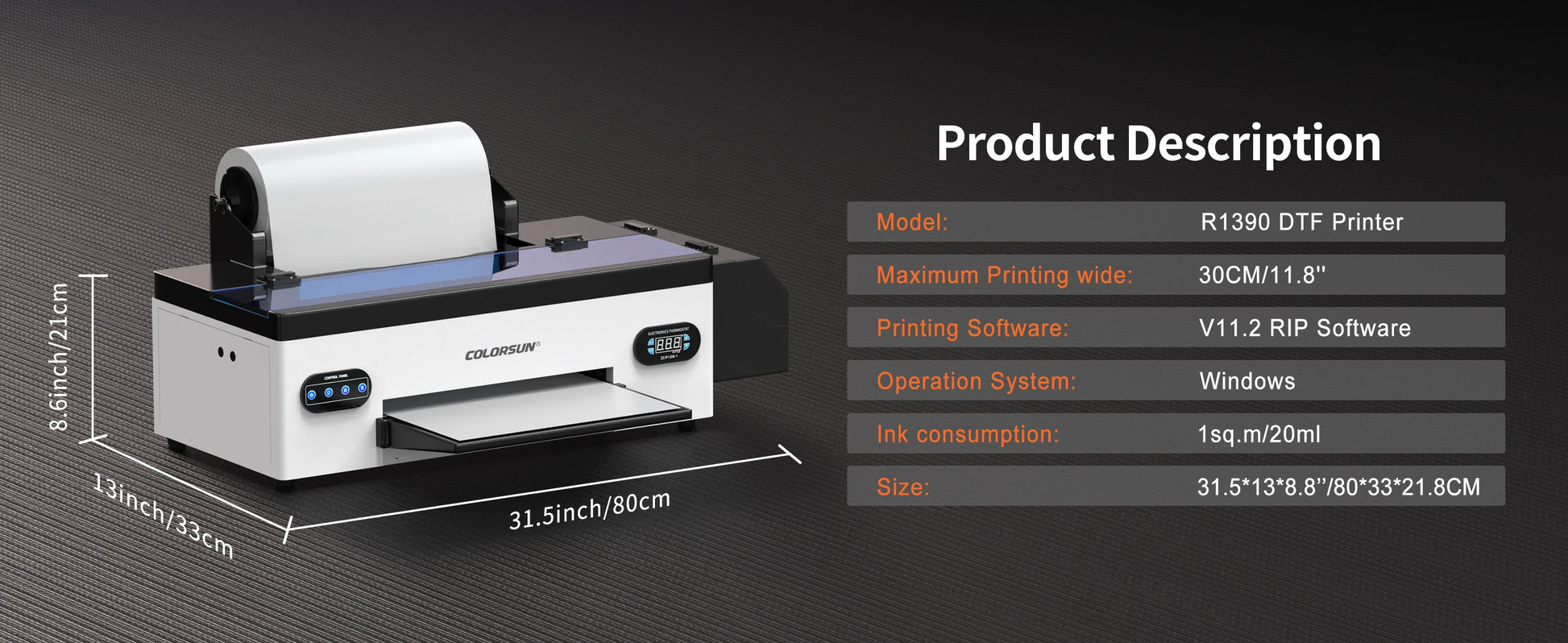

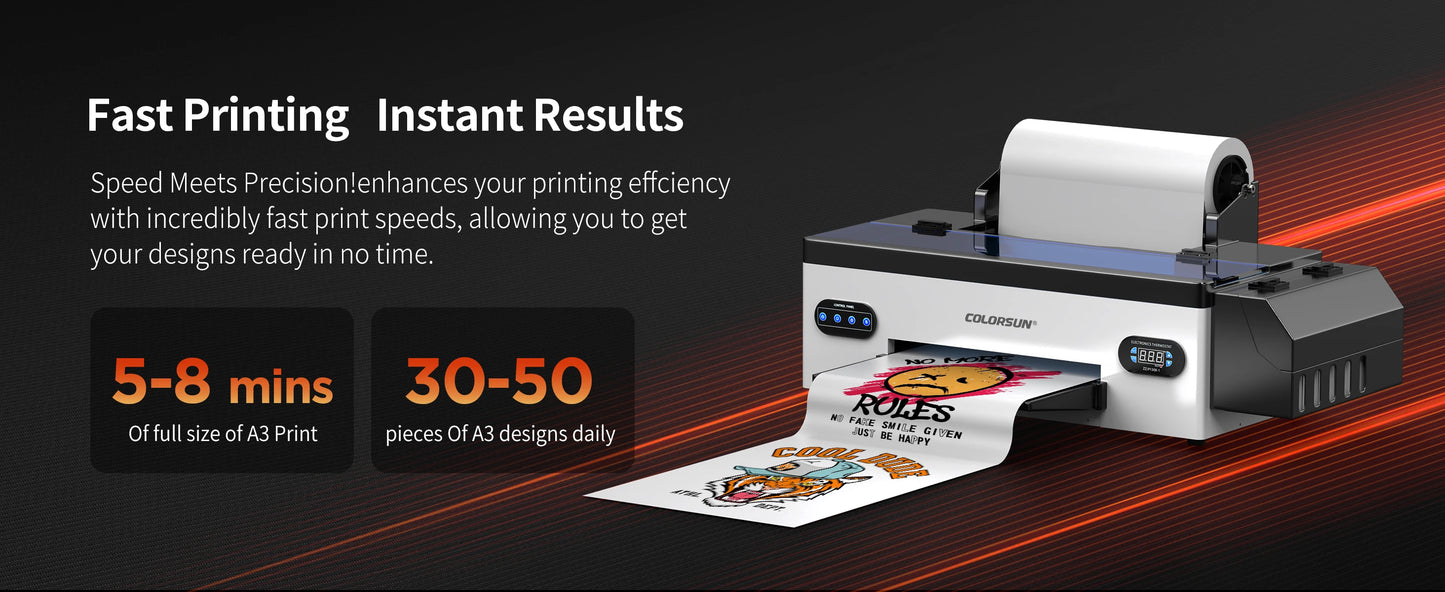

Colorsun A3+R1390 DTF Printer T-shirt Transfer Printing Machine Impresora a3 dtf Printers For T-Shirt Hoodies Bags Sweatshirt

R1390 DTF Printer Feature:

1.Printhead : For Epson R1390 Printhead

2.Printing Size :A3 Size 290*420 MM (11.42*16.54 Inches) DTF printer

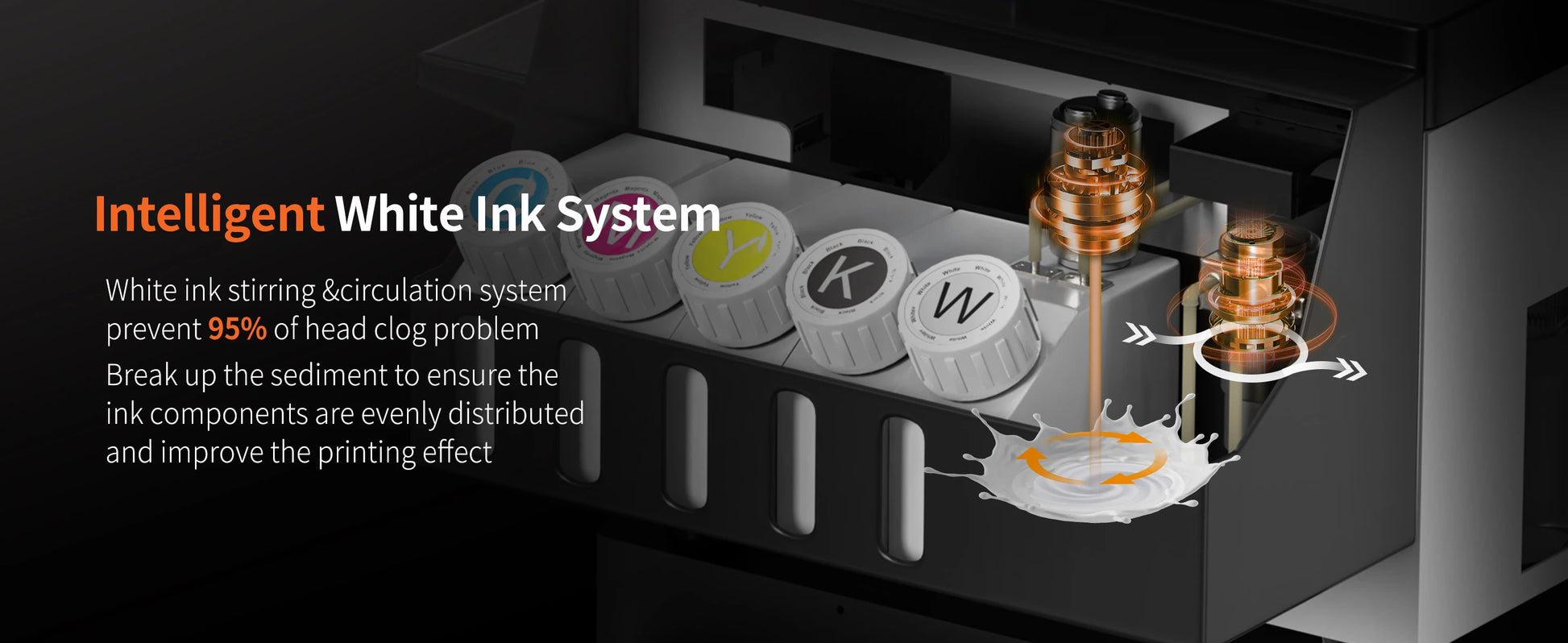

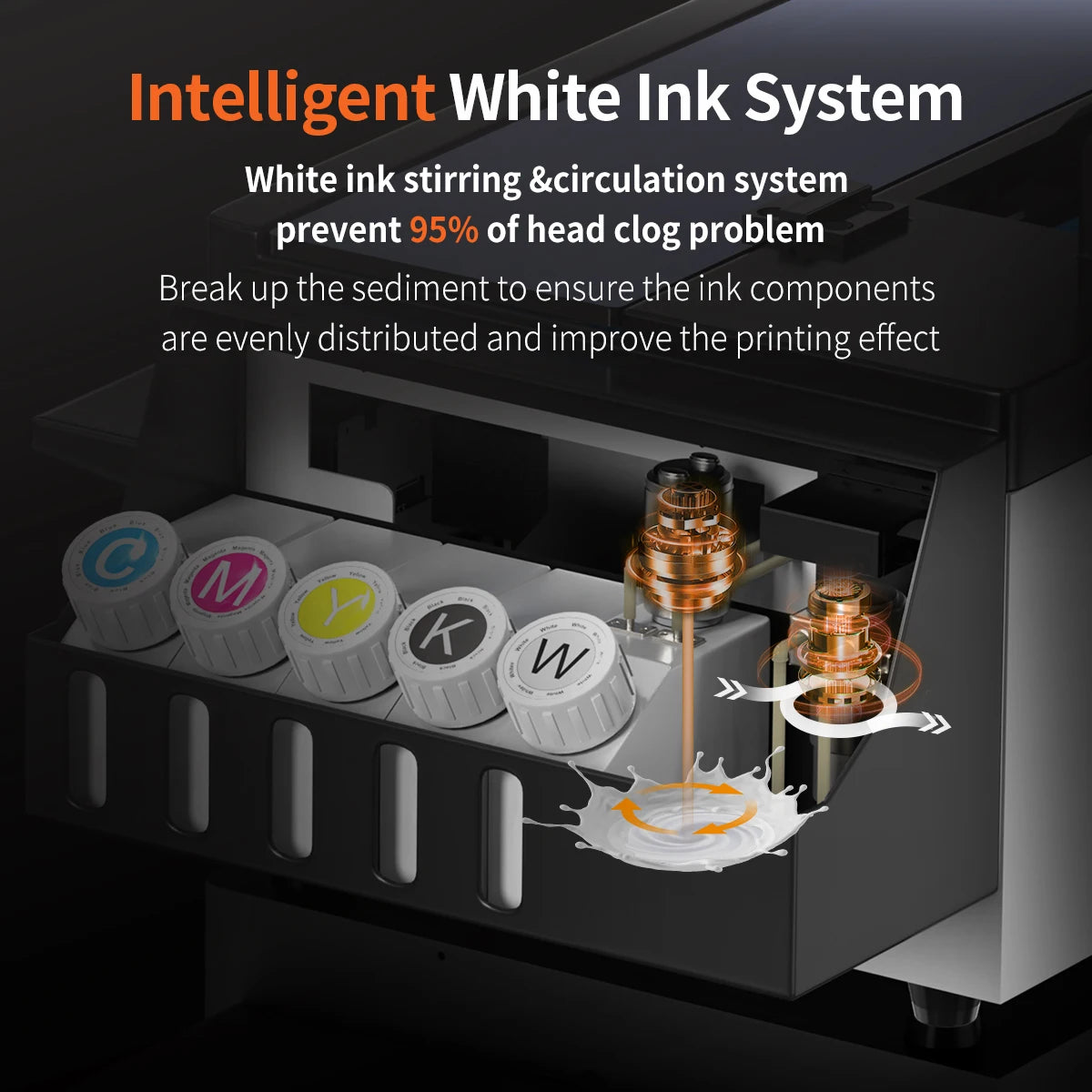

3.White ink System: White ink stirring filtering and circulation to prevent white ink Clogging

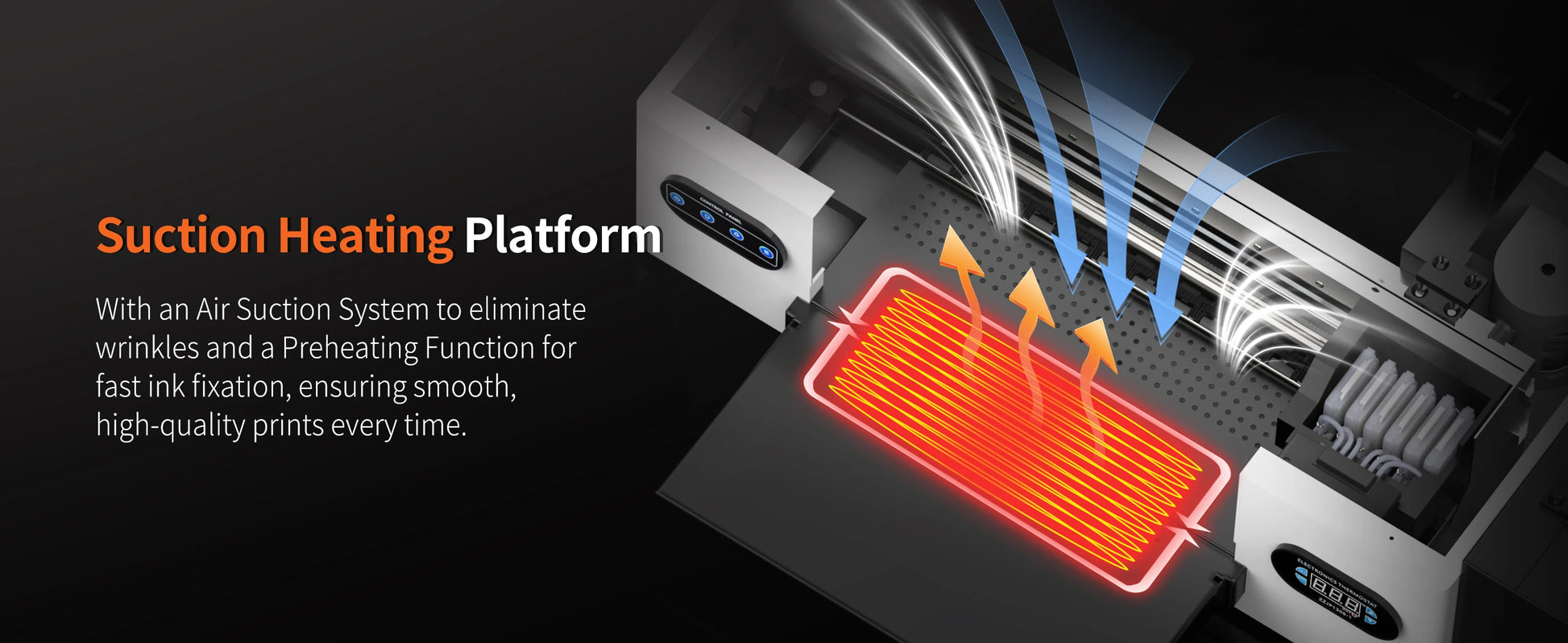

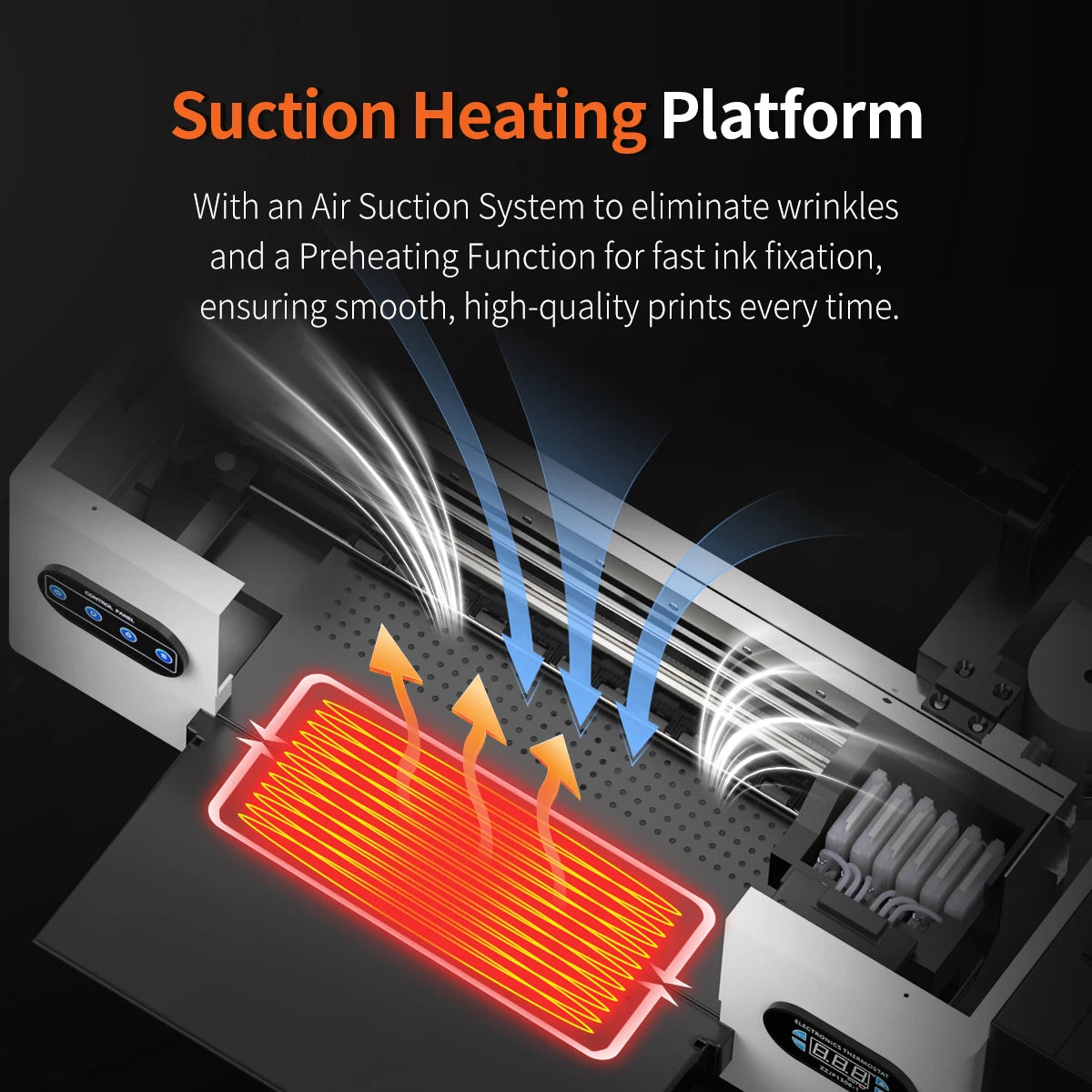

4.Real-time monitoring of temperature and humidity, built-in heating device to accelerate ink curing, With heat function, solidify white ink

5.Color Printing: white ink and color ink can be printed at the same time to improve the printing efficiency

6.Software: Rip software support both roll print and sheet print, Automatic Cleaning add multiplies image at the same time ,automatically clean the print head.

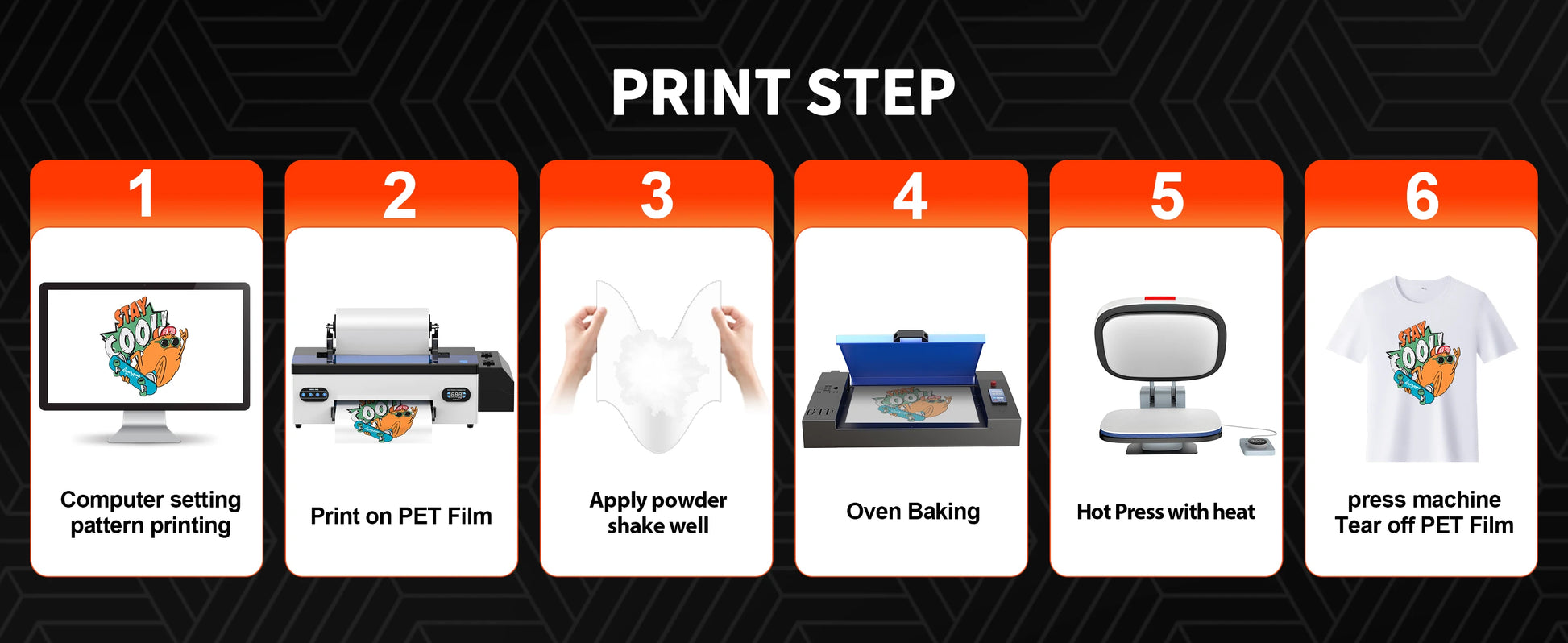

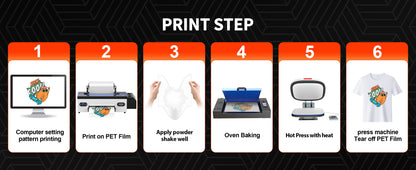

Printing Process:

1.Upload the design image to the software and setting

2.Start printing on the PET Film

3.Apply the hot melt powder on printed and shaker well

4.Use oven to Bake 120 degrees Celsius for 50 seconds

5.After Pet Film cooling put the printed on the cloth you want to transfer

6.Use the heat press Machine 170 degrees Celsius for 10 seconds

7.After Cooling Peel off

What is in the box?

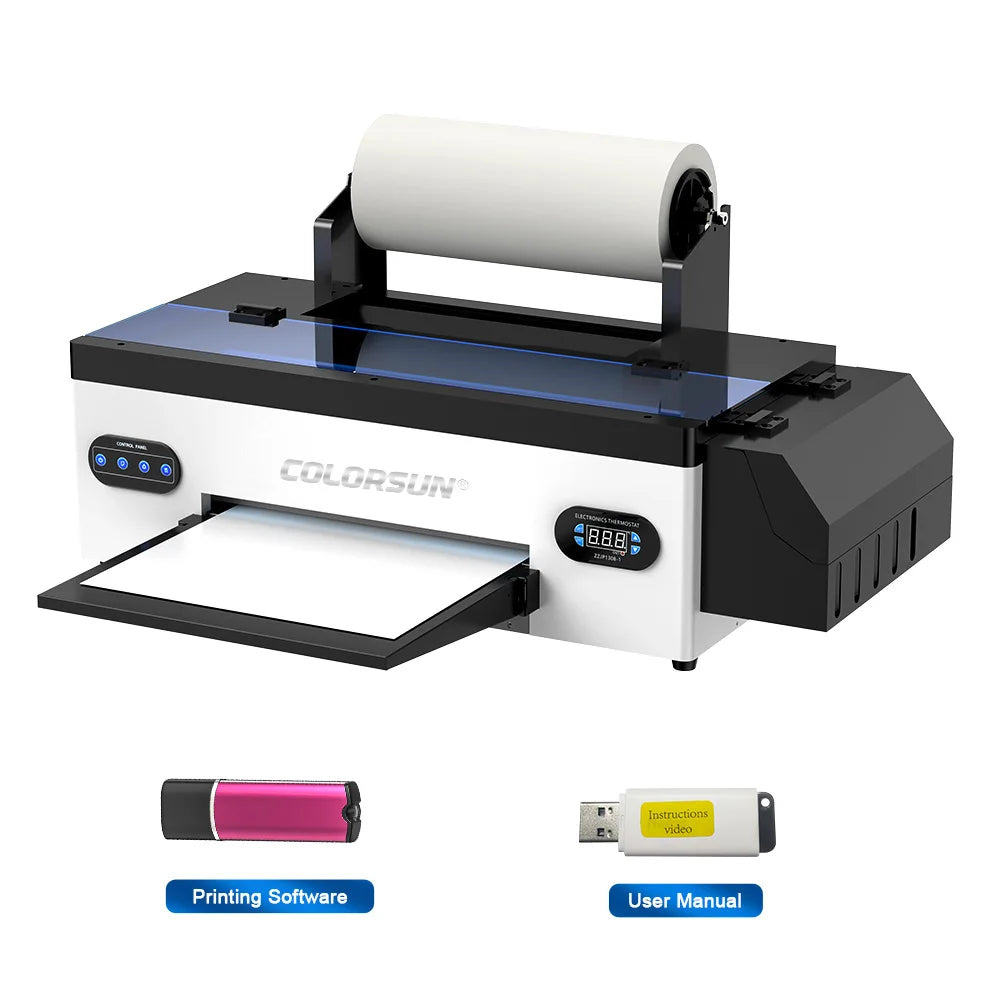

DTF printer:

1.R1390 DTF Printer *1

2.V11 Printing software *1

3.Roller Holder*1

Printer with ink:

1.R1390 DTF Printer*1

2.6*100ml DTF Ink

3.30CM*100M PET Roll Film*1

4.1kg Hot Melt Powder

5.V11 Printing software*1

6.Roll Holder*1

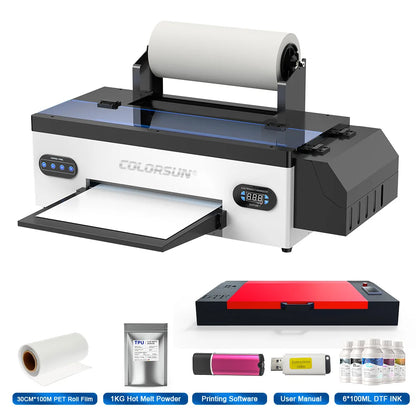

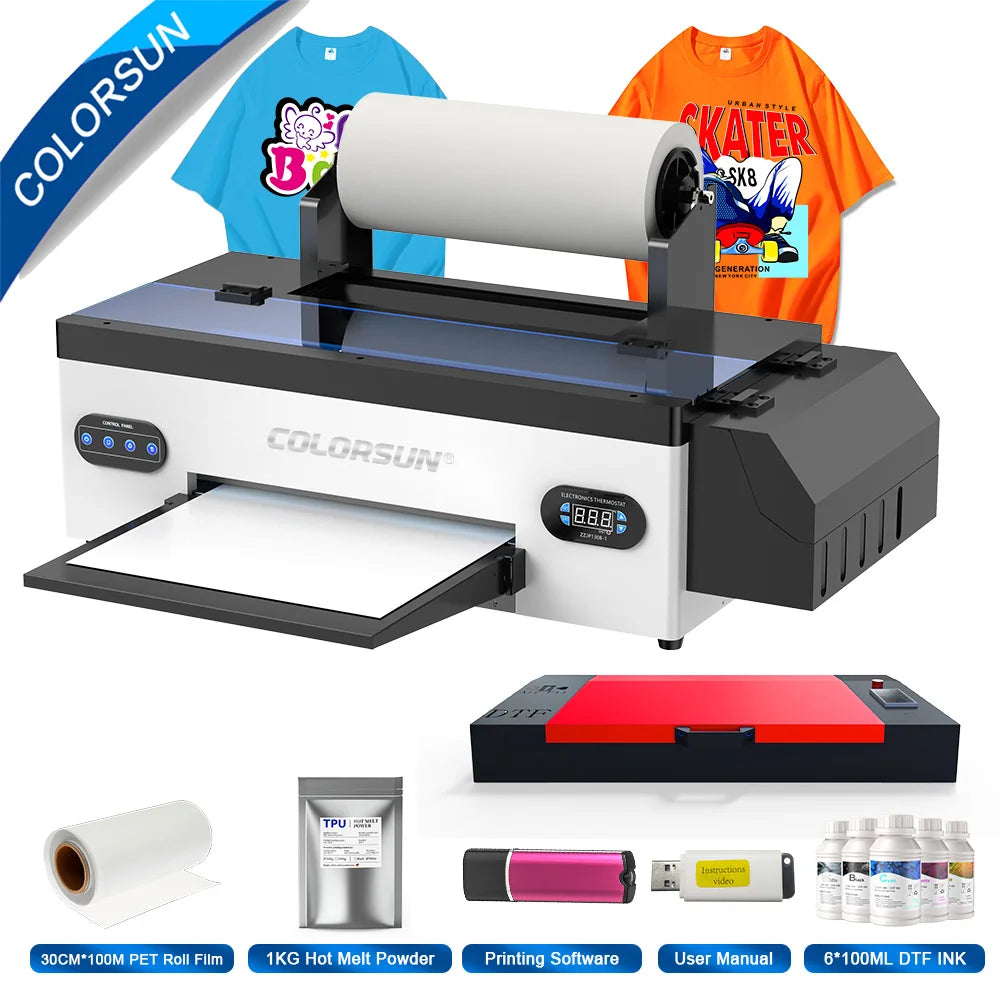

Printer with Oven:

1.R1390 DTF Printer*1

2.A3 PET Oven*1

3.6*100ml DTF Ink

4.30CM*100M PET Roll Film*1

5.1kg Hot Melt Powder

6.V11 Printing software*1

7.Roll Holder*1
