SPECIFICATIONS

After-sales Service Provided: Online support,Video Technical Support,Free Spare Parts

Film &Clamp Cut: Automatic (Heat type)

Load Size Diagonal: 1680mm shrink wrap machine

Maximum Wrapping Height: 2300mm

Maximum wrapping speed: 30-40 loads/hour

Standard Film Width: 500mm

Turntable Drive: 1.5HP

Turntable Size of machine wrapping box: 1800mm(length side)

Turntable Speed: 0-16RPM(Adjustable)

Voltage: 3Phase/380V/50HZ

Weight (KG): 1600

application: Food,Chemical

automatic grade: Automatic

brand name: LEABON pallet wrapping machine

core components: PLC,Engine,Bearing

dimension(l*w*h): 7330mm*1130mm*1500mm

driven type: Electric

infeed&output conveyor: 2*1.6m

key selling points: Long Service Life

machinery test report: Provided

max load weight of box wrapping machine: 3000kgs

packaging material: Plastic

packaging type: Film

place of origin: Henan, China

video outgoing-inspection: Provided

warranty: 3 years

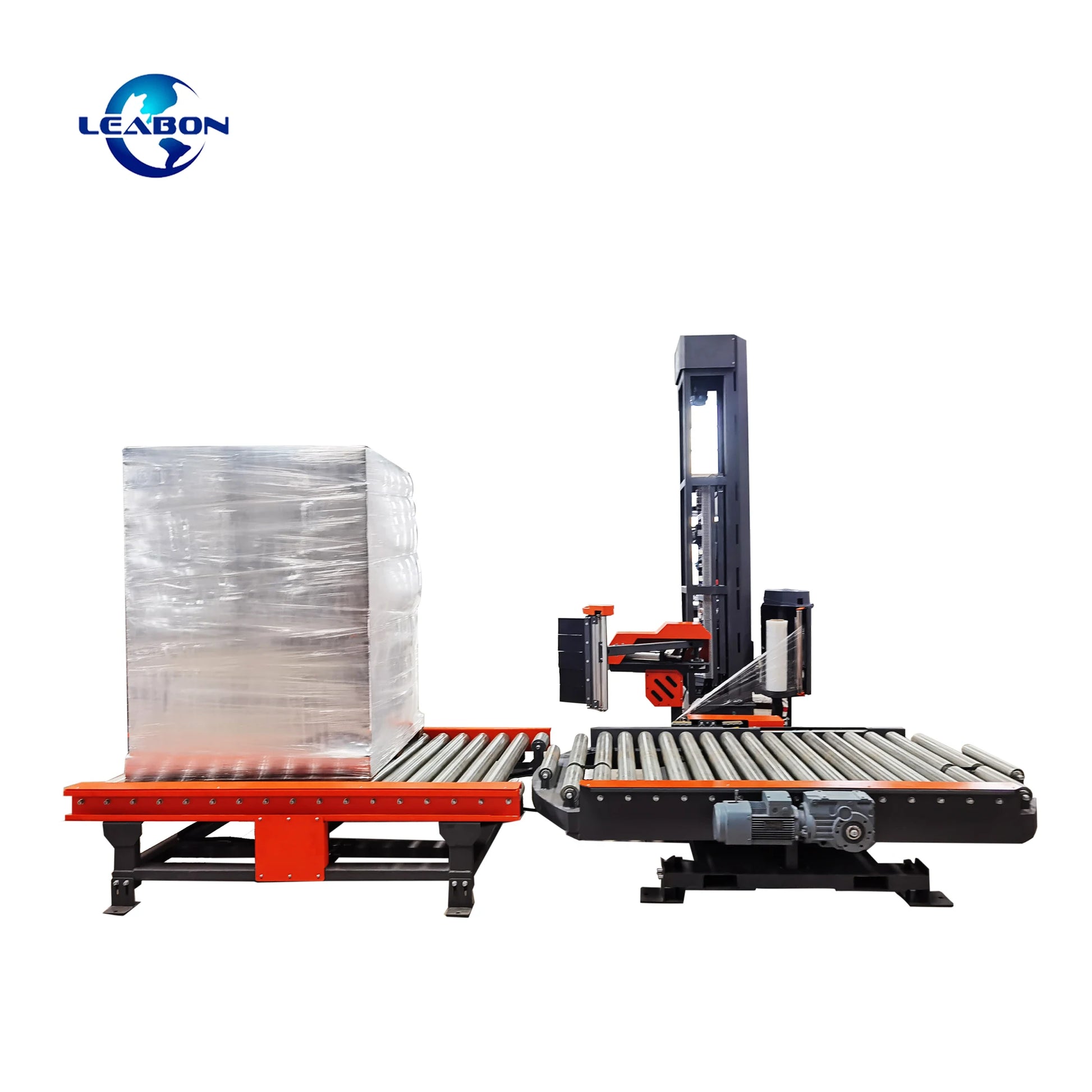

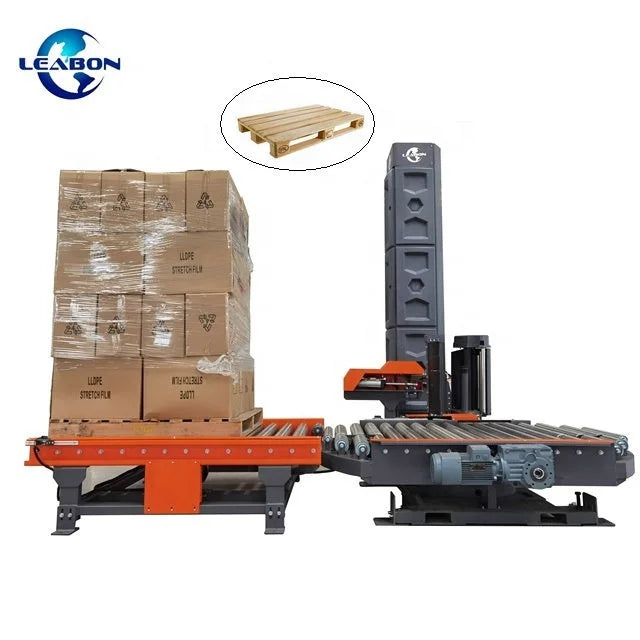

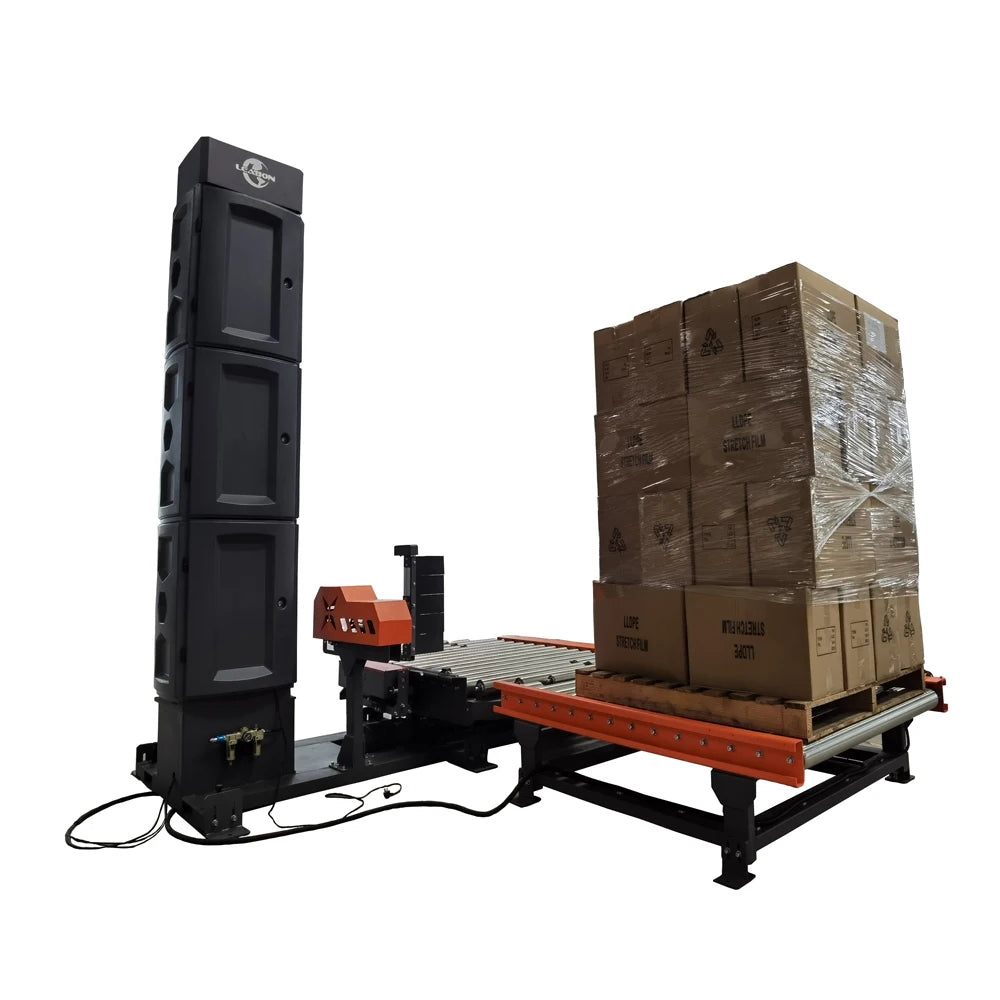

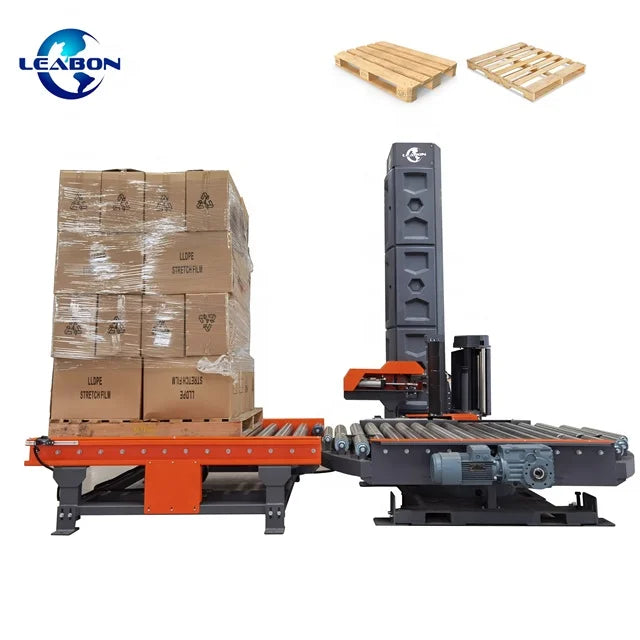

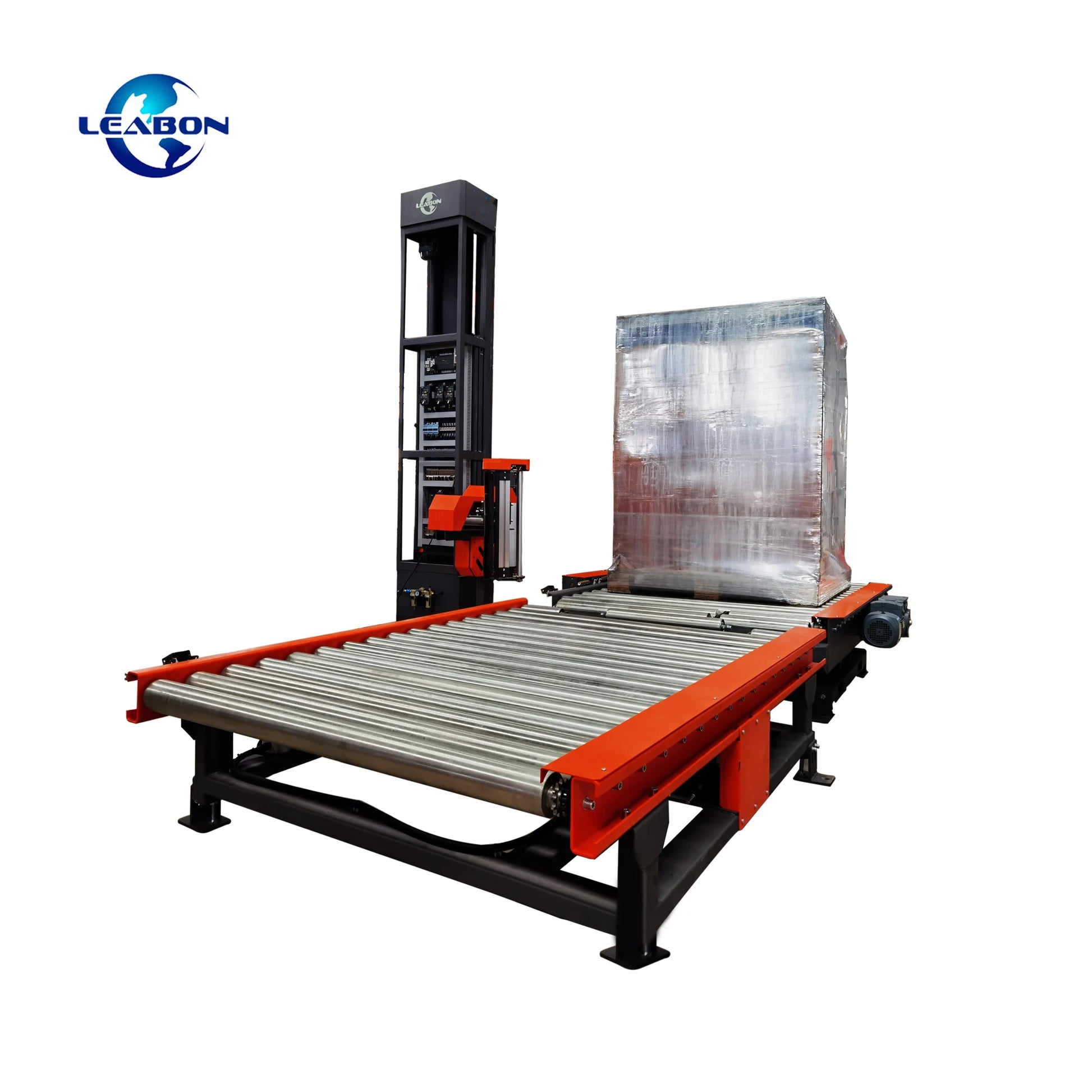

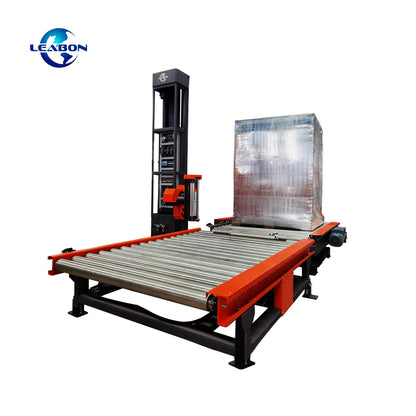

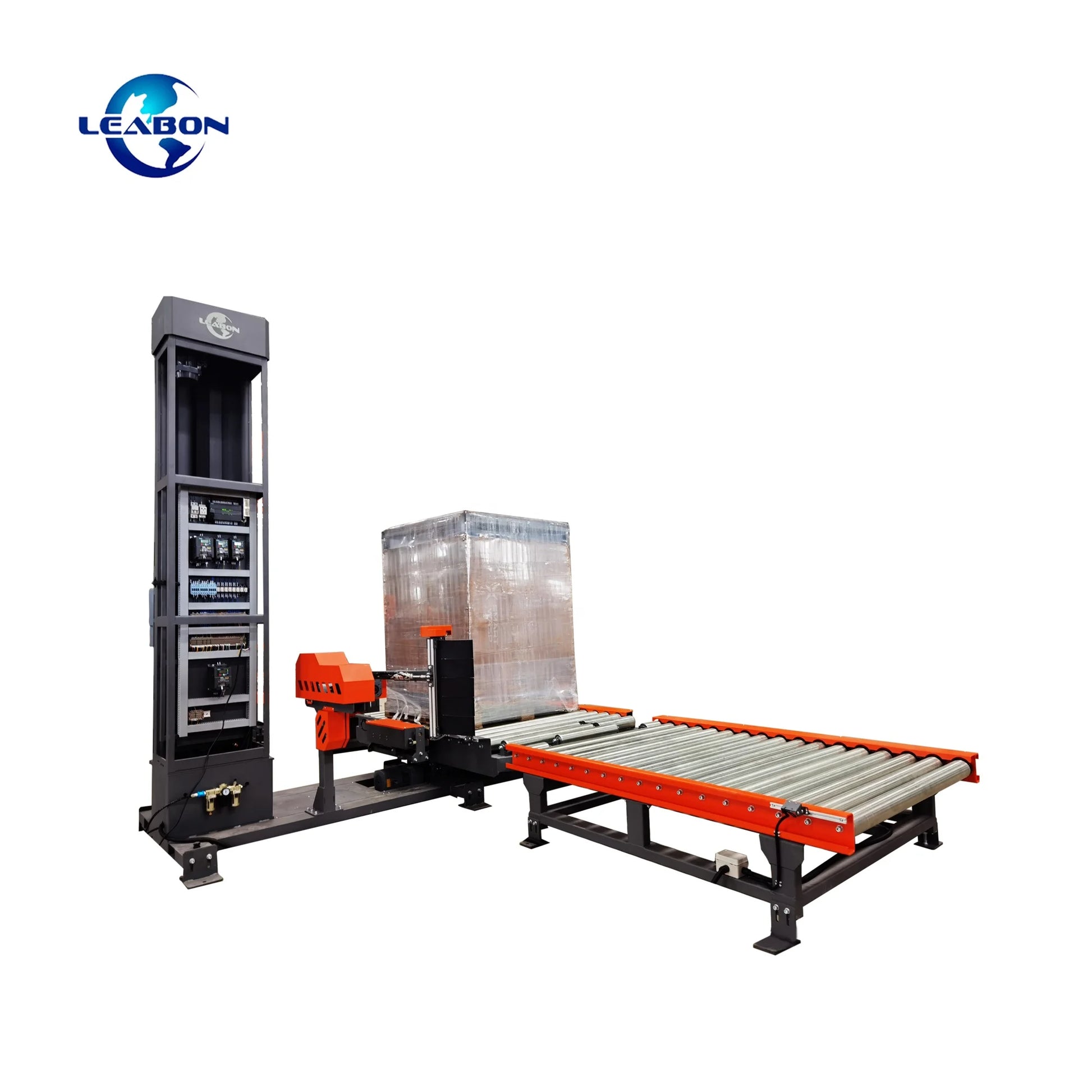

Hot Selling Industrial Vertical Automatic Stretch Film Pallet Wrapping Machine Shrink Wrapper Machine for Pallet

Product Description

Specification

Model of wrapping machine	LBS-300 pallet wrapping machine
Maximum wrapping speed	30-40 loads/hour
Load Size Diagonal	1680mm
Maximum Wrapping Height	2300mm
Turntable Speed of shrink wrap machine	0-16RPM(Adjustable)
Turntable Size	1800mm(length side)
Turntable Drive	1.5PH
max load weight	Automatic (Heat type)
infeed&output conveyor	2*1.6m
max load weight	3000KG
Standard Film Width	500mm
Constant Film Delivery Force	Standard
Standard Pre-Stretch	250% pre-stretch
Roller Materials	Galvanized Roller diameter :76mm
Film Capacity	250mm Diametery
Film Delivery System	Power Roller -Stretch Plus
Film Rope System	Optional
Weighing Scale	Optional
Machine Weight	1200KG
Machine Size	L:2800mm W:1900mm H:3200mm
Turntable technology	Slewing Ring
Voltage	220V/50HZ 1phase
Transport mode	20GP Continer for manual shrink wrap machine

Details Picuures of Carton/Box/Wood/Pallet Wrapping Machine ：

Details Images

1 - Variable Wrapping Force System

Automatic adjust wrap force according to pallet shape 1.let every part of the pallets be wrapped tightly shrink wrapping machine automatic
2.protect the corner of the loads ,avoid the corner concave. 300% Pre-stretch rate , save 30% film compared to traditional pallet
wrapping machine.wrapping machine pallet

2- Pallet Grip System

Pallet grip system: film bottom narrowed to become film rope , film rope grip to pallet & products during wrapping. 1.during
transport ,no need worry the products fall down w hen the pallets get violent vibration 2.if the truckfork damage the film on the
bottom of pallet ,the film do not breach . stretch wrap machine

3- Intelligent Touch Screen

We all use Siemens Touch Screen, Siemens Inverter and Siemens PLC. Do not use cheaper brand spare parts that may cause lots of
trouble to our customers in the future

film shrinking wrapping machine

4- Slewing Bearing Turntable small wrapping machine

online pallet wrapper use the slewing bearing turntable ,max load weight 3000KG ,more quiet and lower vibration compare with the
chain drive turntable.

5- Durable Conveyor of automatic wrapping machine

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

6- Auto Cut & Clamp Film System

LEABON new design cut and clamp system, after finishing wrapping, machine will automatically cutting the film and the tail will be
sealedon the pallet perfectly by the brush.

7- Intelligent operation Guiding system

1. Machine with LED indicator on top cover.
Ready for work--Blue color Working--Green color Alarm--Red color

2.Touch screen guide you how to operate machine. If alarm appears, touch screen will show you how to solve problem

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Before quote, pls cconfirm follows information with us , so that we can suggest one most model suitable for your demand.

1. Any requirements for the efficiency of the online wrapping machine?

(how many pallets need be wrapped per hours ) film wrapping machine

2. whats working heightof pallet wrapping machine you need ?
if link to your production line ,it;s very important give this information , our standard conveyor working height 500mm

3.How many pcs conveyor you need?
Please comment the length of conbeyor as well if needs(any material requirement )

4. what's your pallet shape ,pls share photos to us if possible.

5. What is your voltage of wood wrapping machines ?
