55MP 48MP 4K 1080P HDMI USB Video Microscope Camera 1-130X Infinitely Far C Mount Lens LED Light for Digital Image Acquisition
55MP 48MP 4K 1080P HDMI USB Video Microscope Camera 1-130X Infinitely Far C Mount Lens LED Light for Digital Image Acquisition
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Battery Included: No
Brand Name: HIGH CLOUD
Certification: CE,FCC
Choice: yes
Drawtube: Monocular
Features: High Definition,Portable,Digital
High-concerned chemical: None
Is Smart Device: No
Magnification Ratio: 500X & Under
Material: Metal
Model Number: Video Microscope
Origin: Mainland China
Theory: Video Microscope
semi_Choice: yes

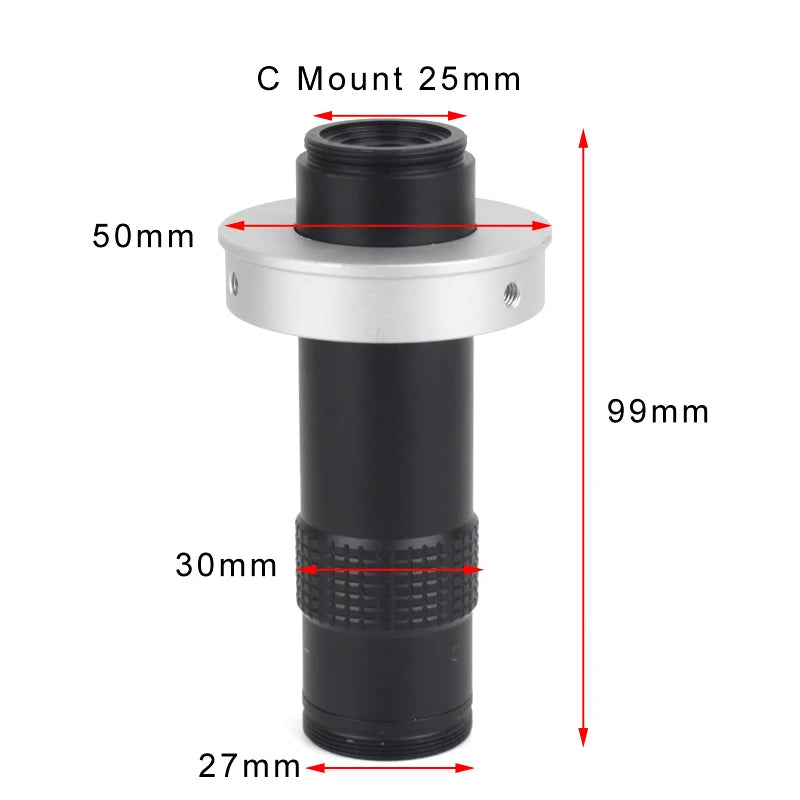

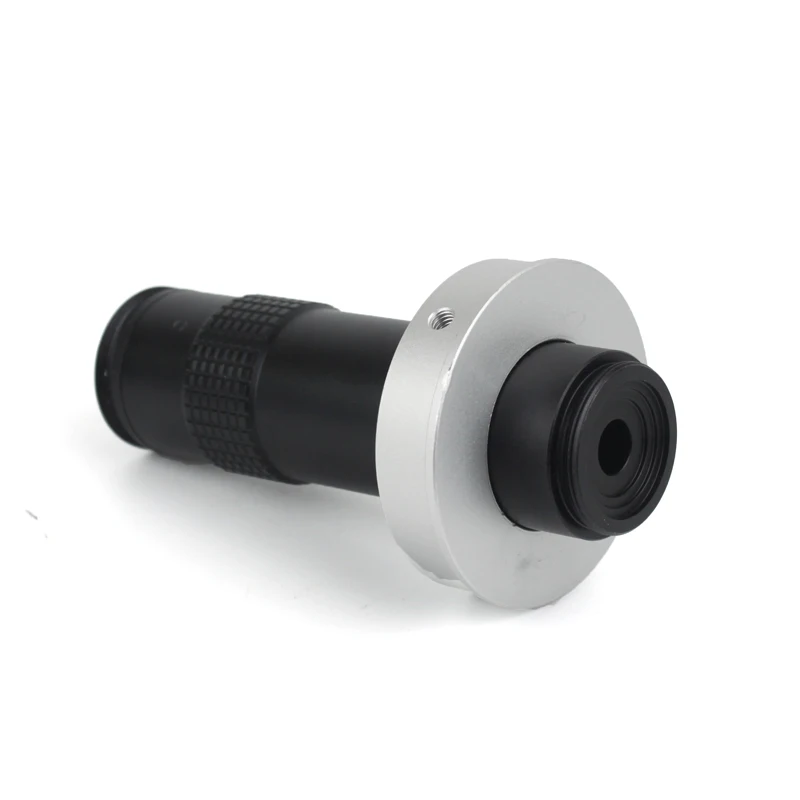

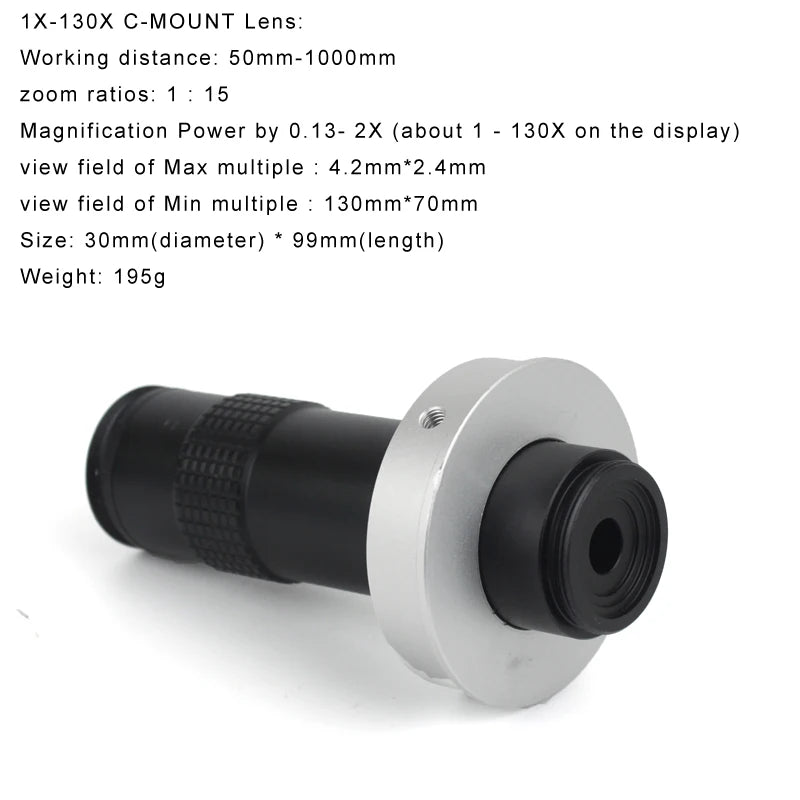

1X-130X C-MOUNT Lens:
Working distance: 50mm-infinity
zoom ratios: 1 : 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple : 3.6mm*2mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

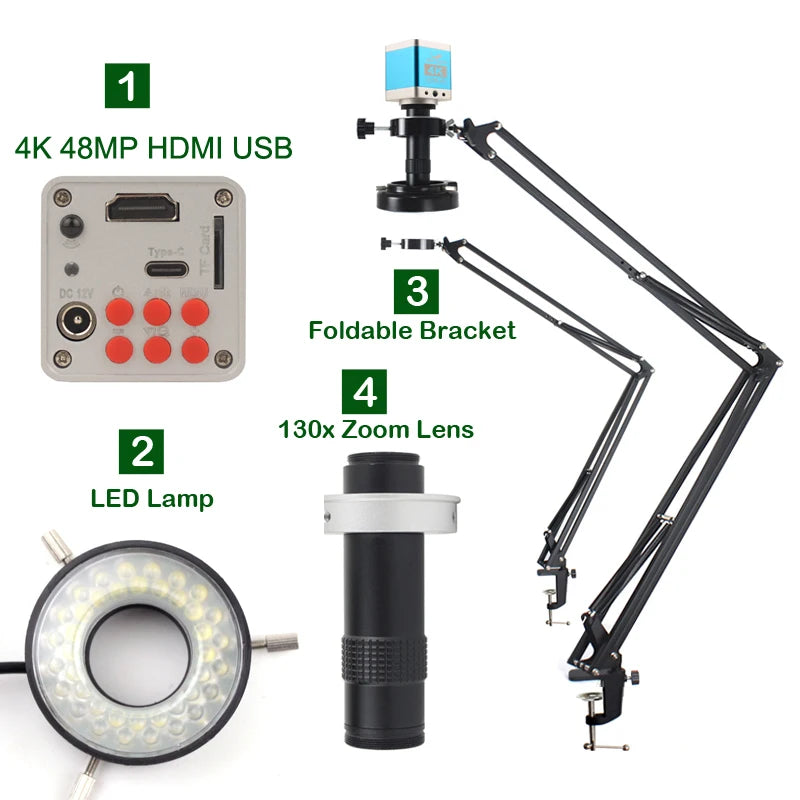

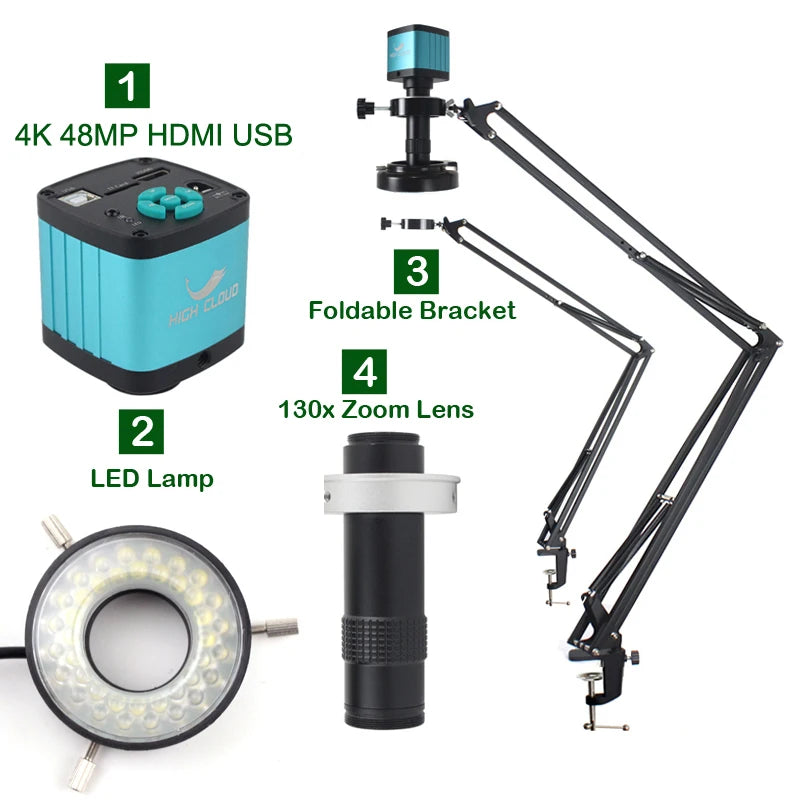

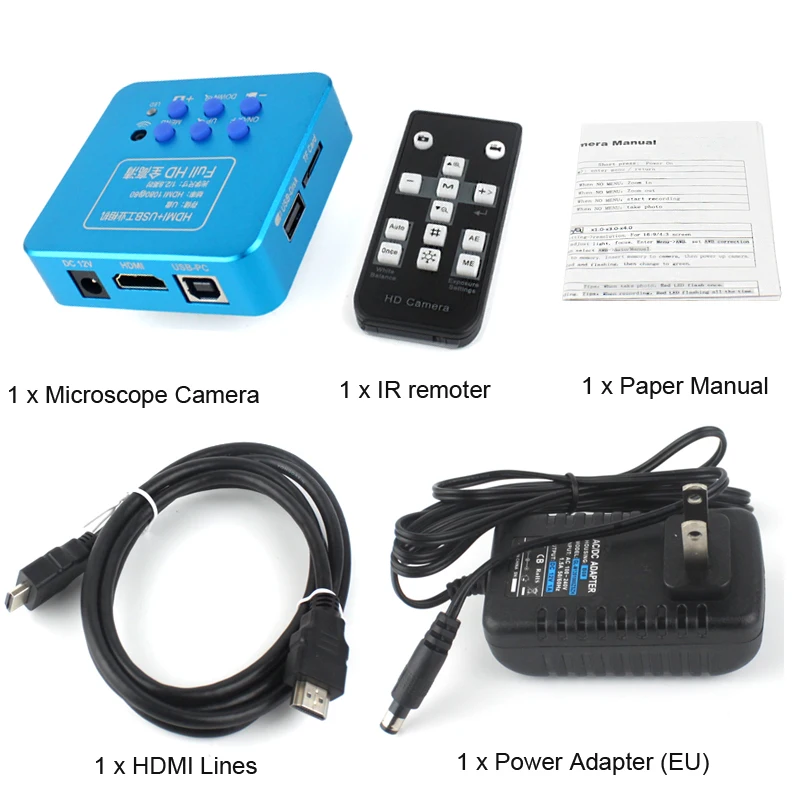

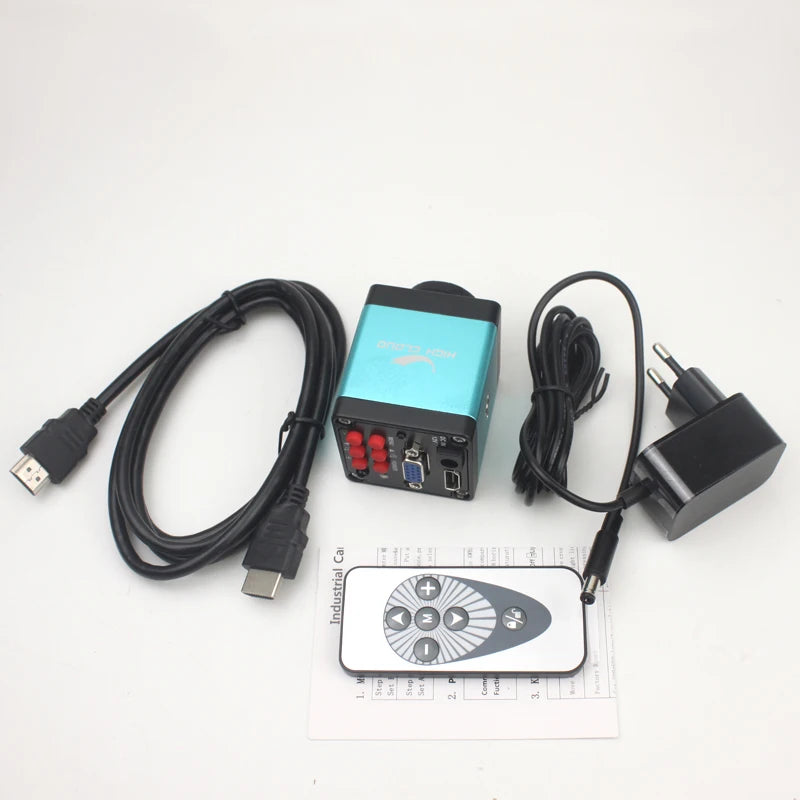

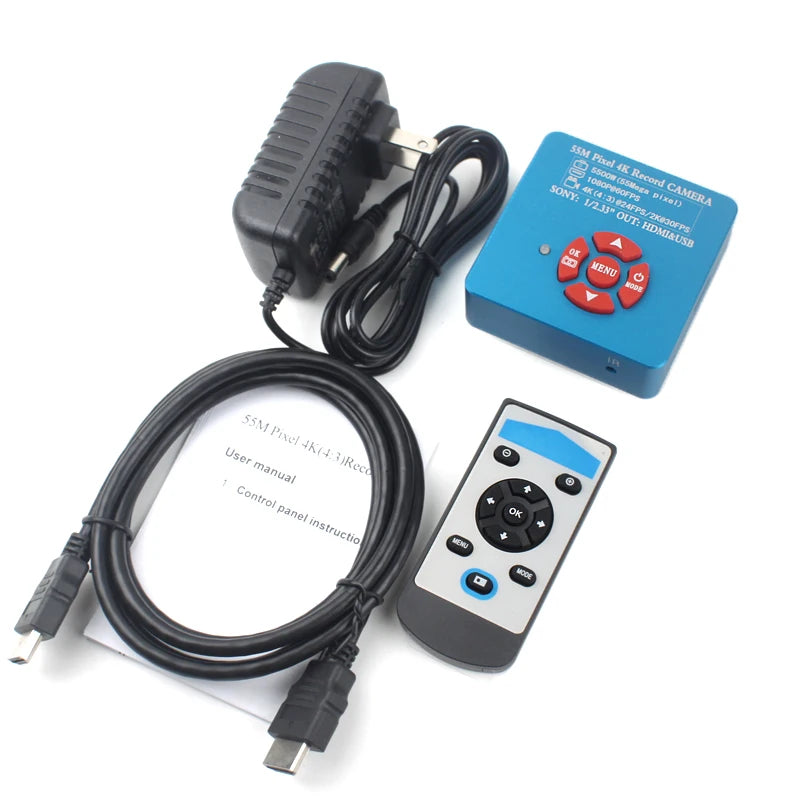

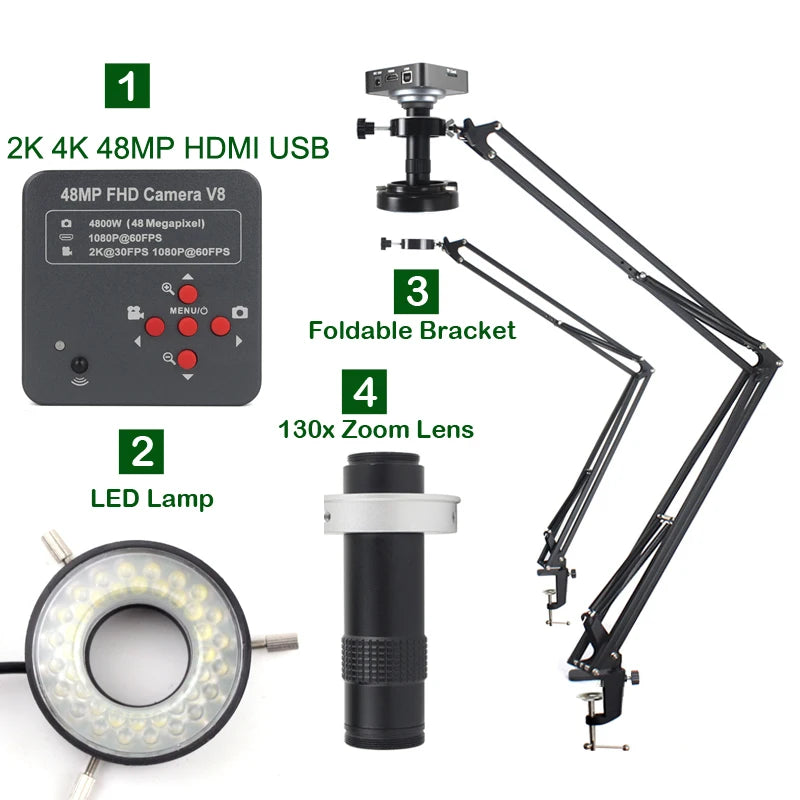

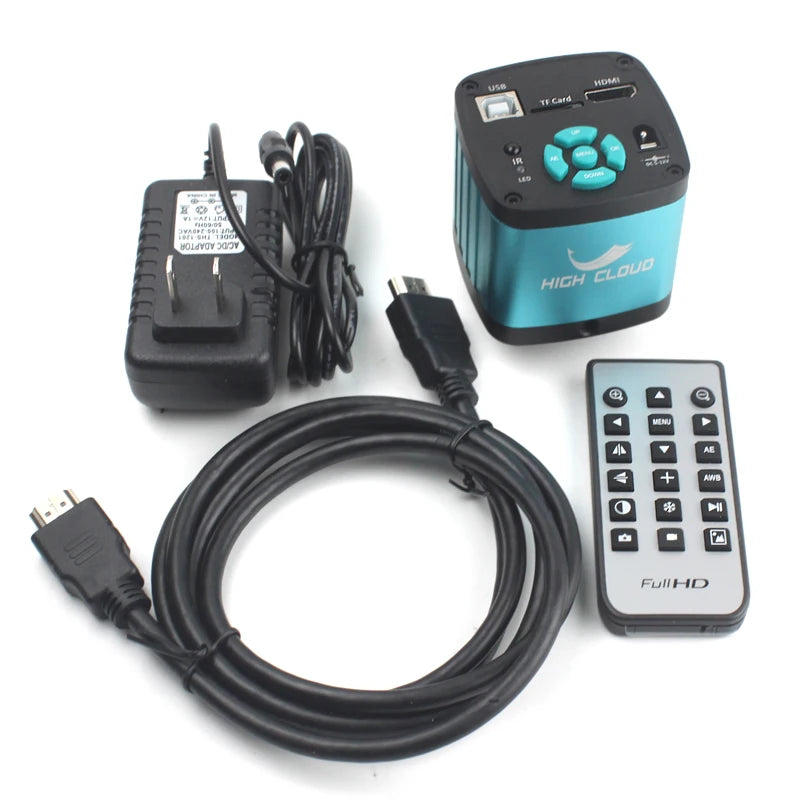

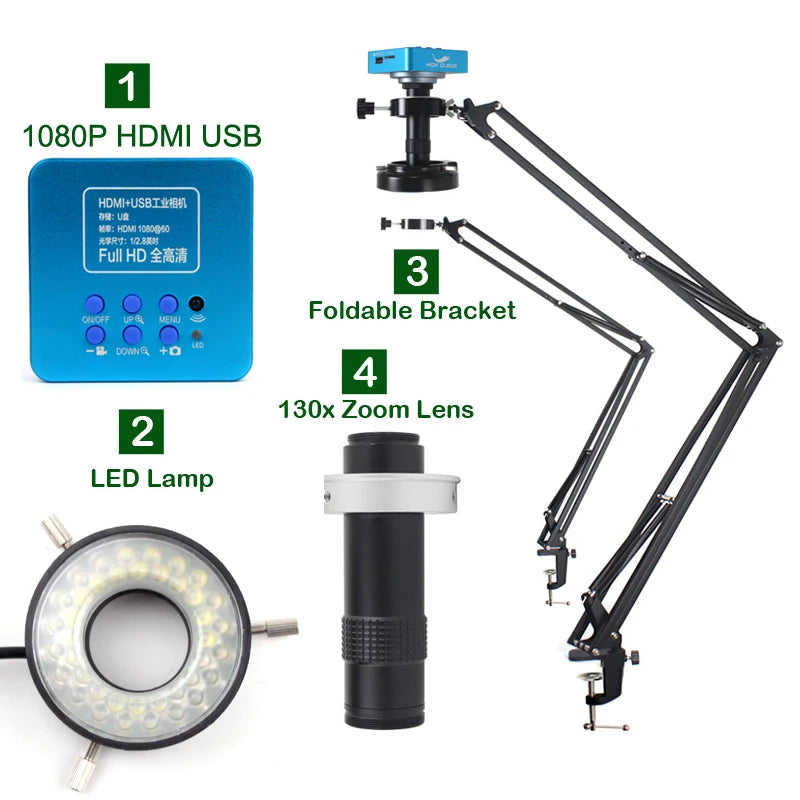

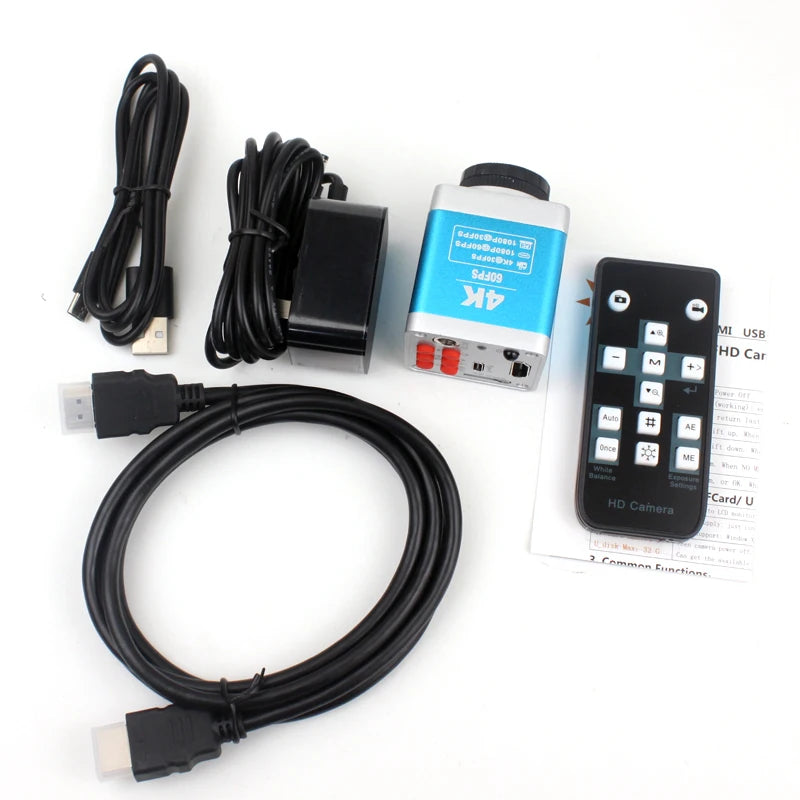

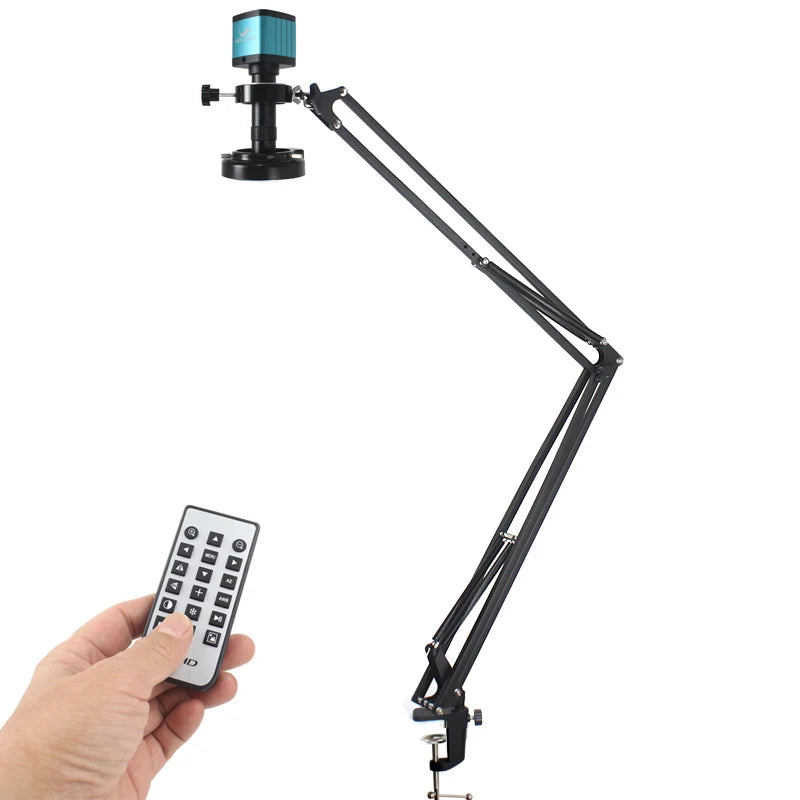

Full Set package List :

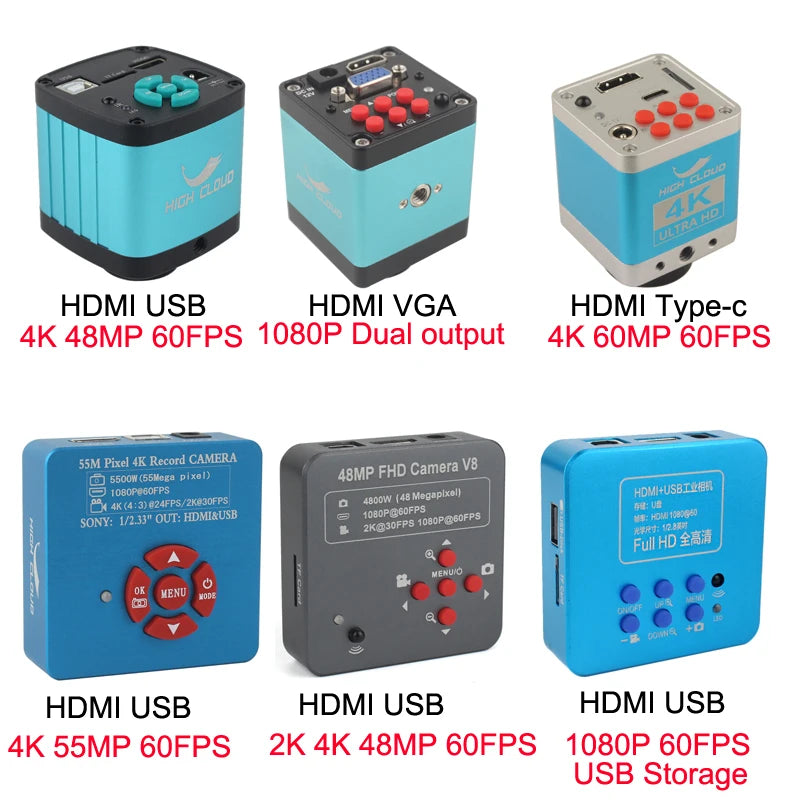

1 x Camera(Multiple specifications to choose from)
1 x Power Adapter
1 x HDMI Cable
1 x Remote Control

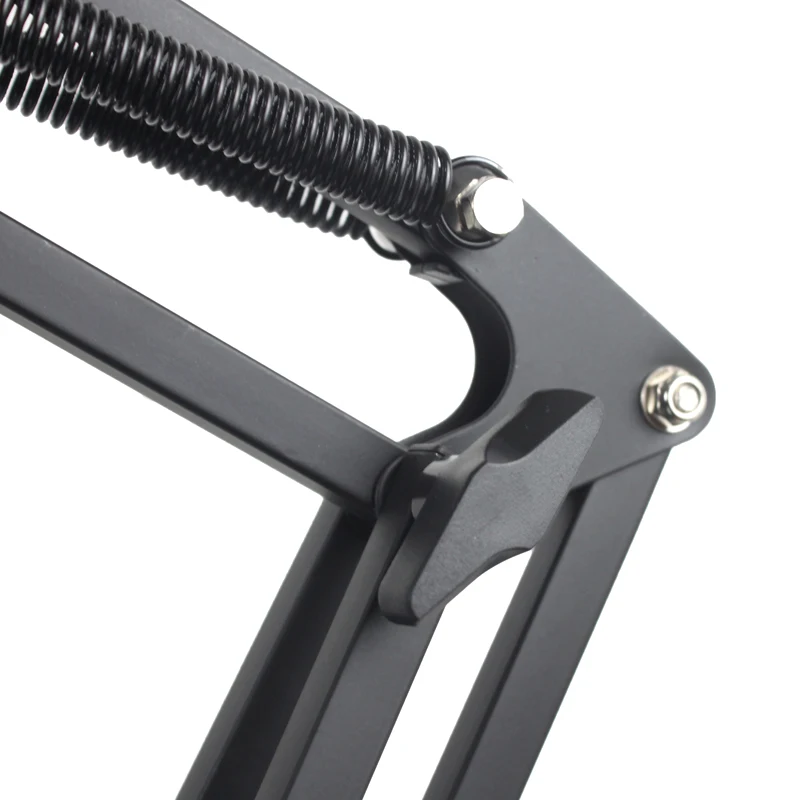

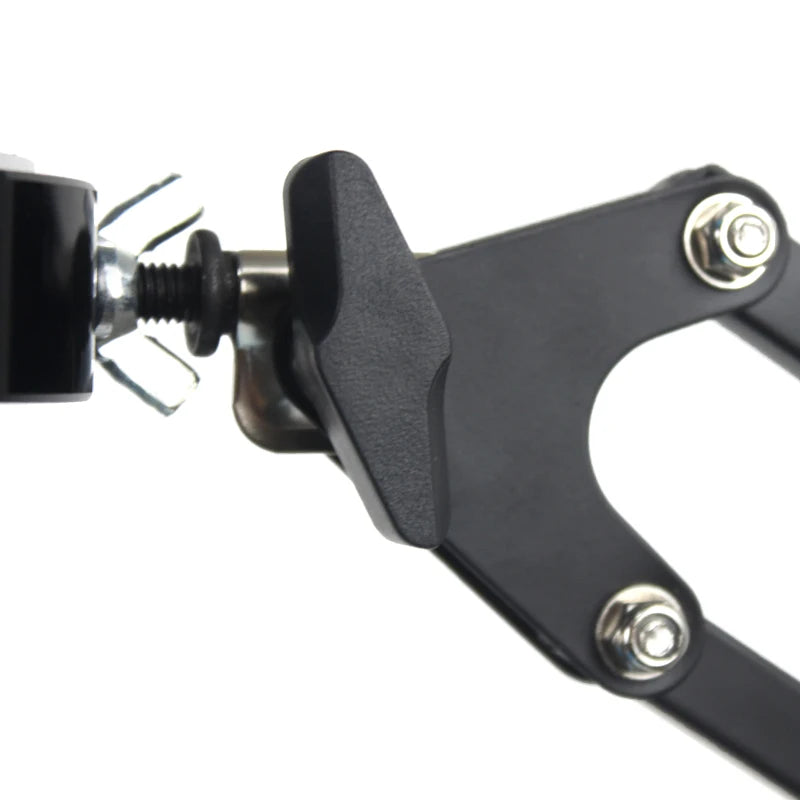

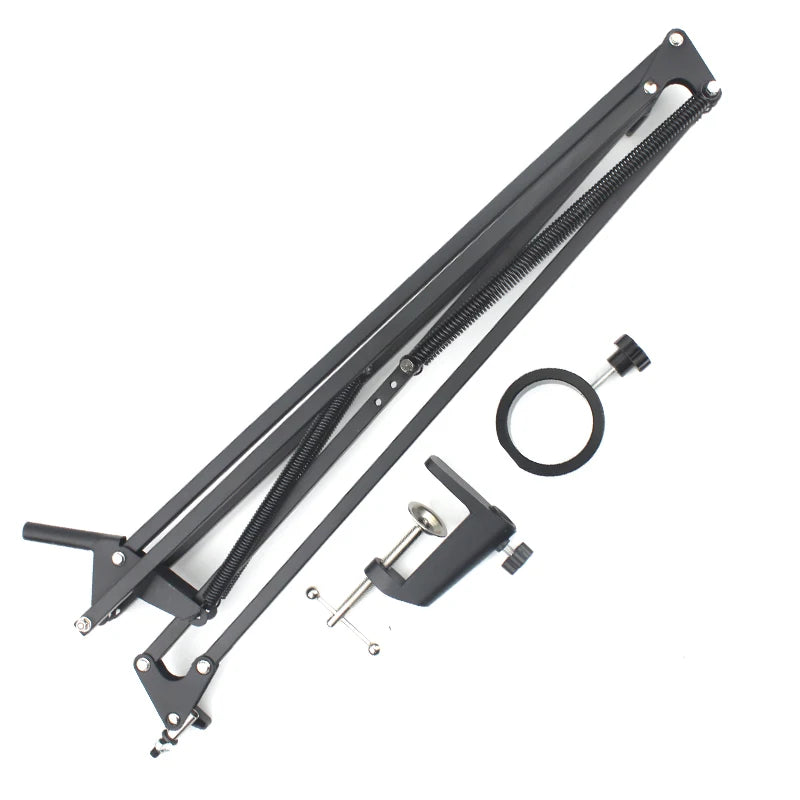

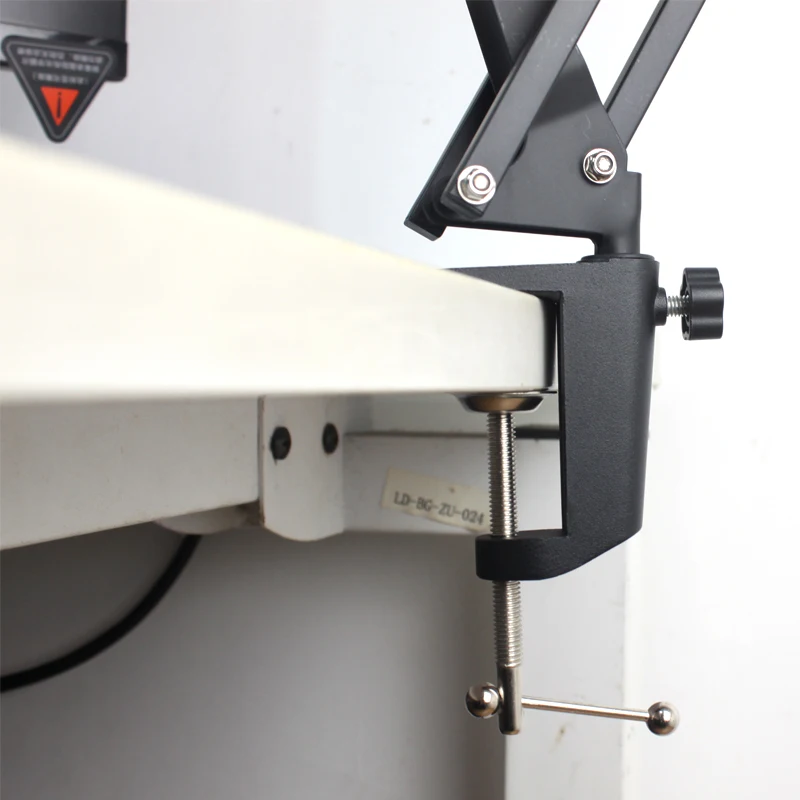

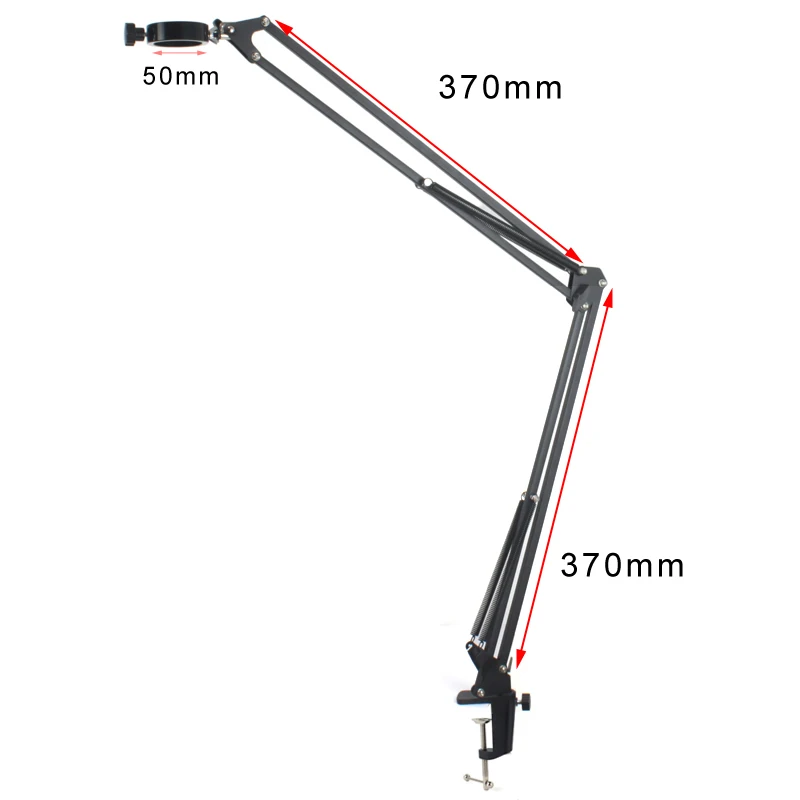

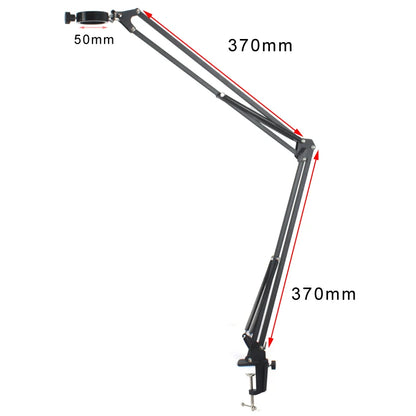

1 x Holder
1 x LED Light
1 x Lens

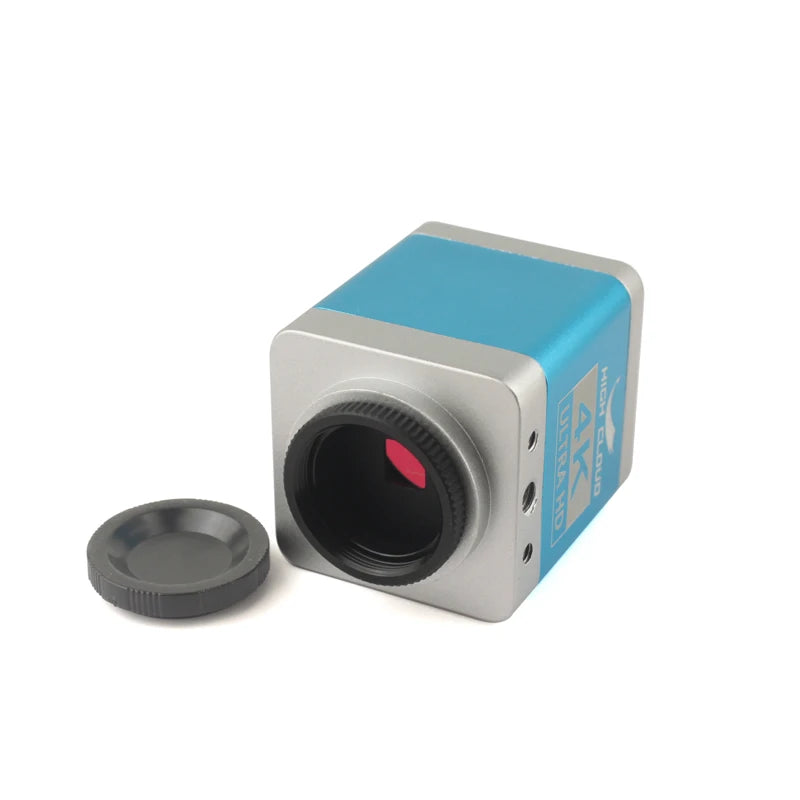

Specification:

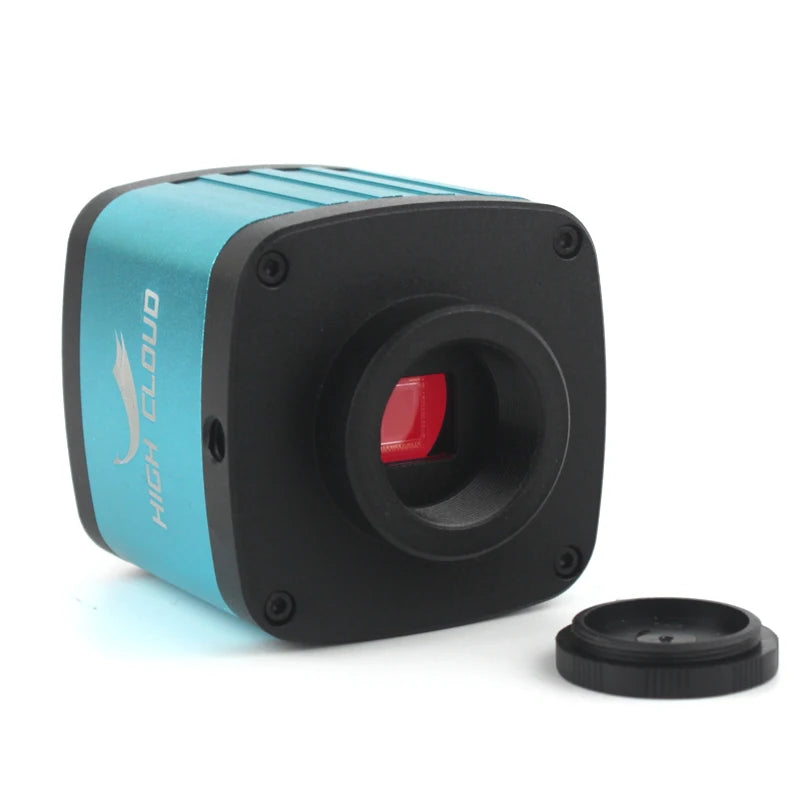

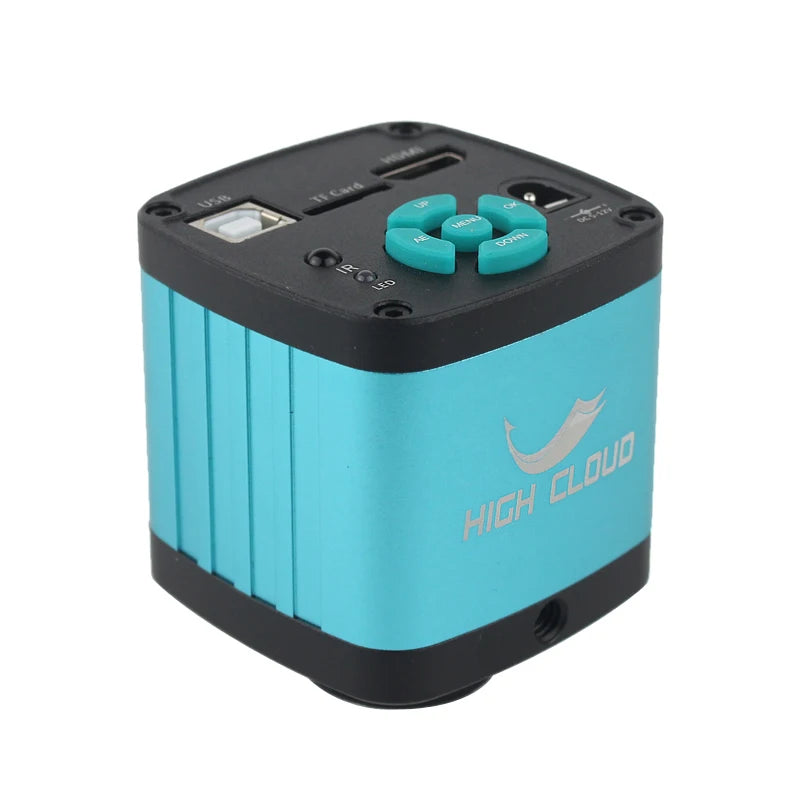

Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal

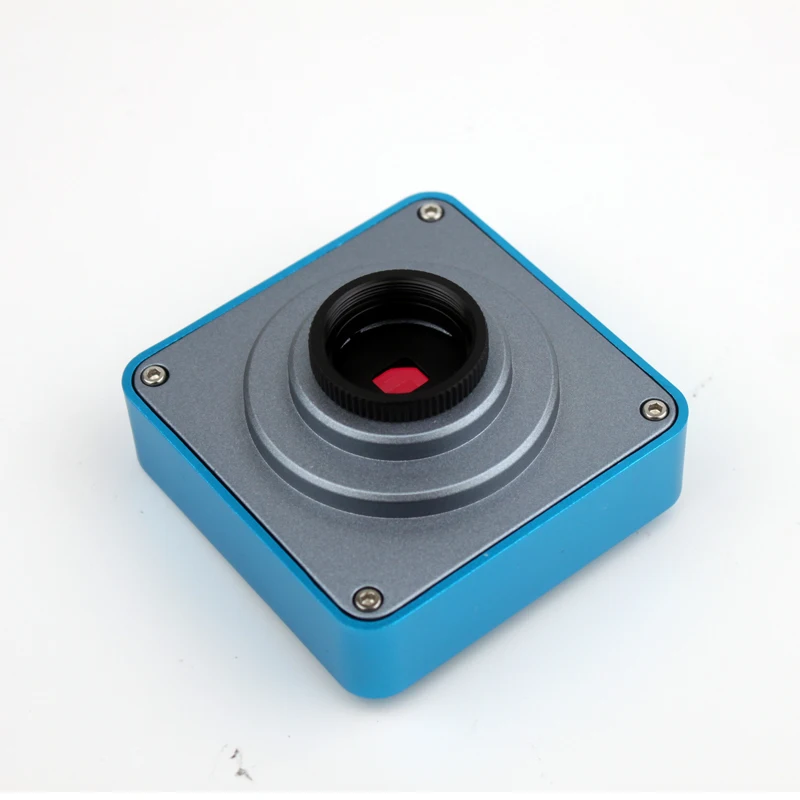

Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

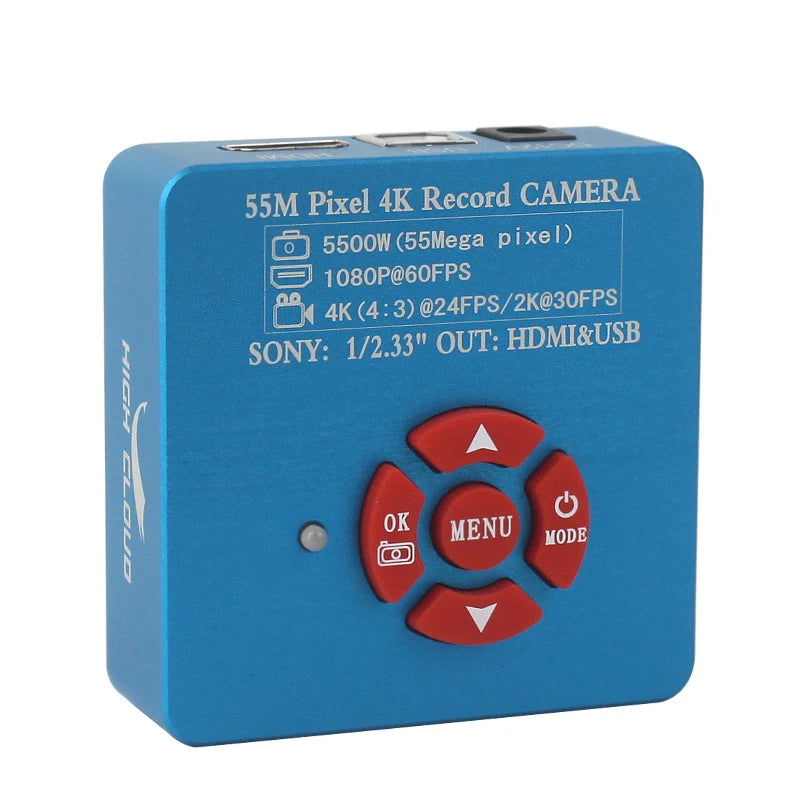

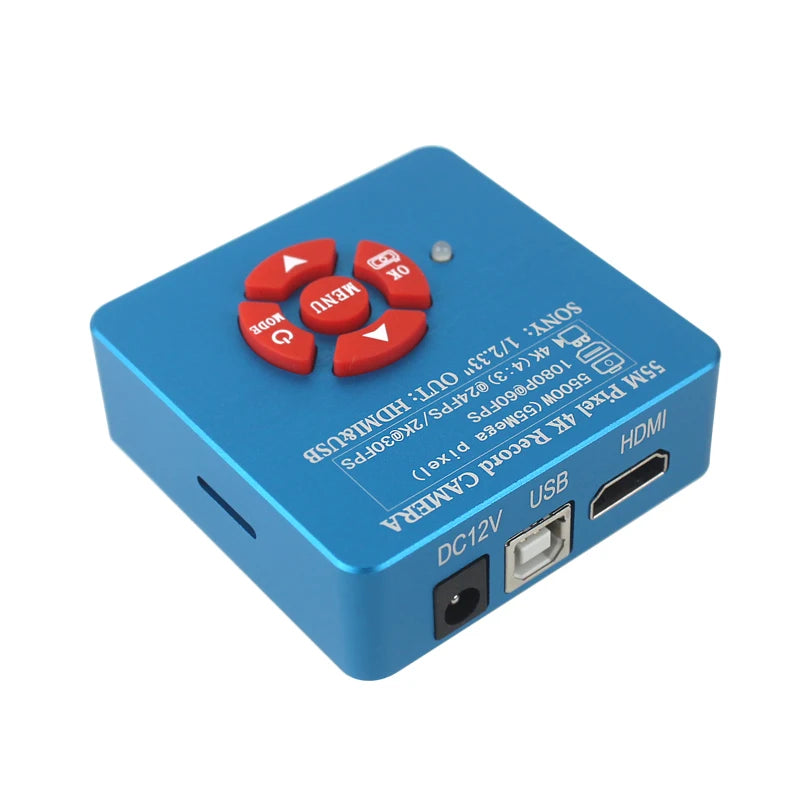

Picture Pixel: 9885X5560 55M Pixel 9280X5220 48M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS censer: SONY 1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max)
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70℃
Optical format:Sony Sensor 1/2.8 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:4k MegaPixel
Video record resolution:4K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
USB Resolution:1080P@30FPS
Photo:4k
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A
Lens interface:C/CS口
Language:EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP
Net weight:180g
High Quality, High Resolution, Clear Images

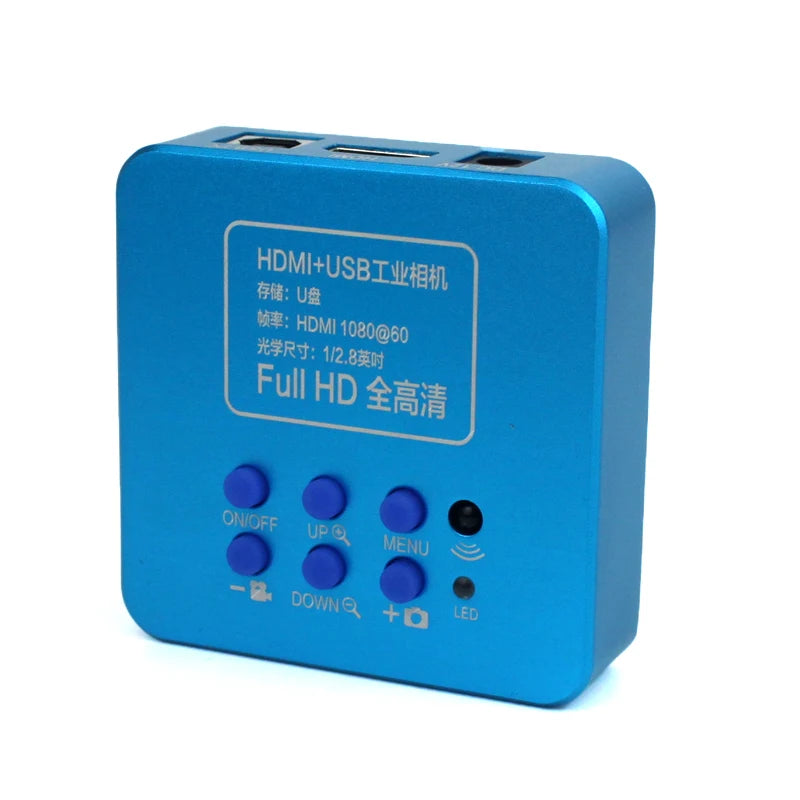

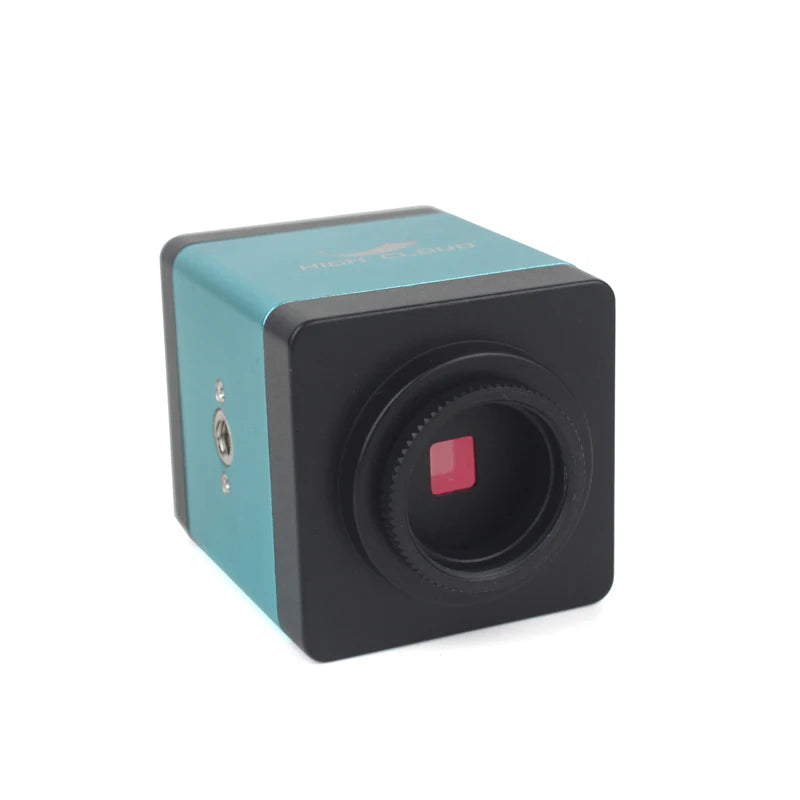

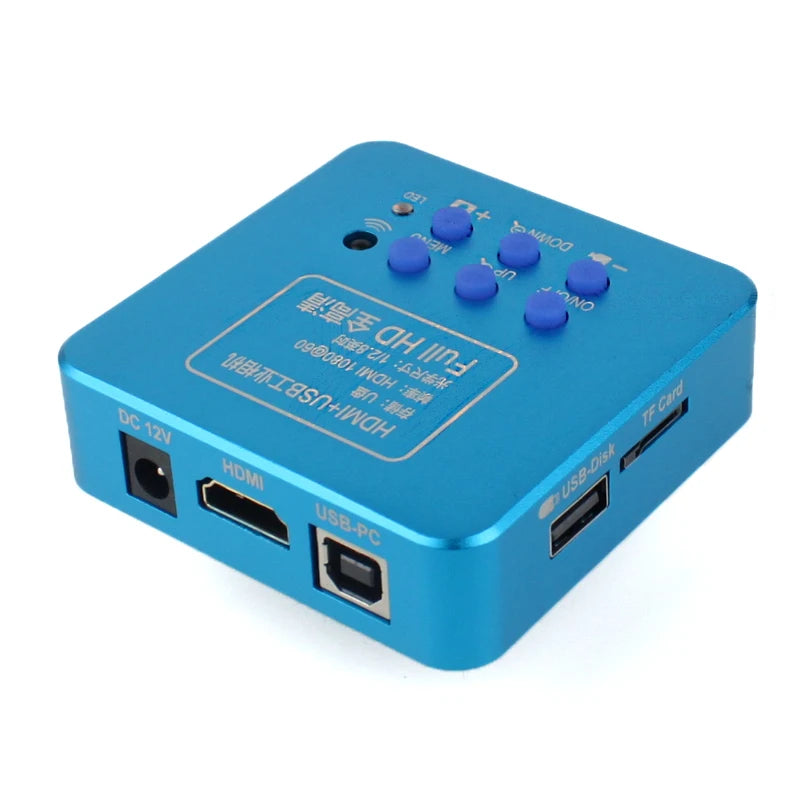

1/2.8" SONY IMX307 CMOS
1080P 1920*1080 Video Camera
HDMI USB Video Model
Added TF card and U disk picture and video storage functions.

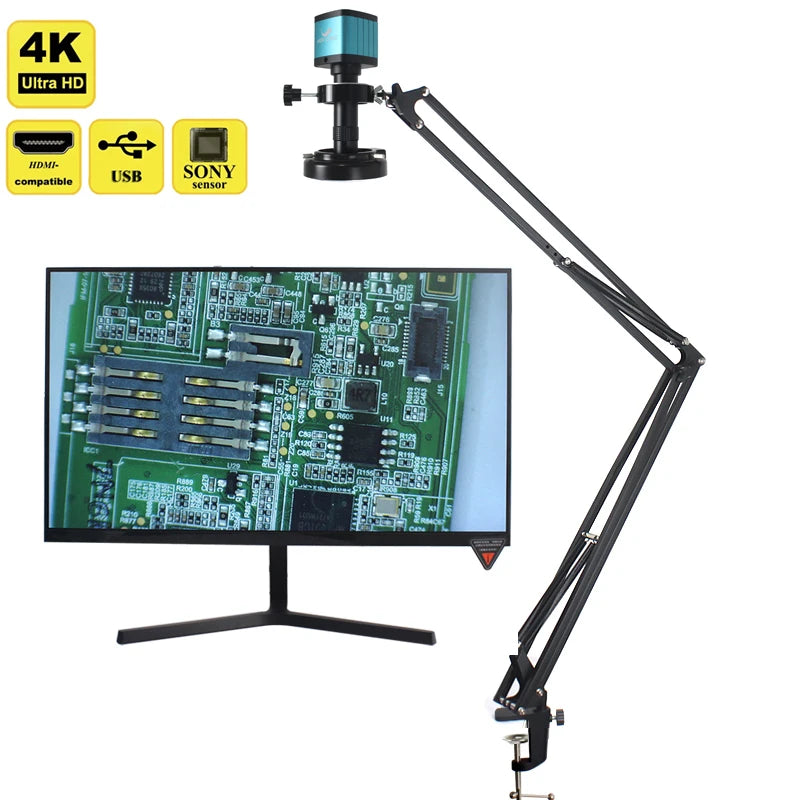

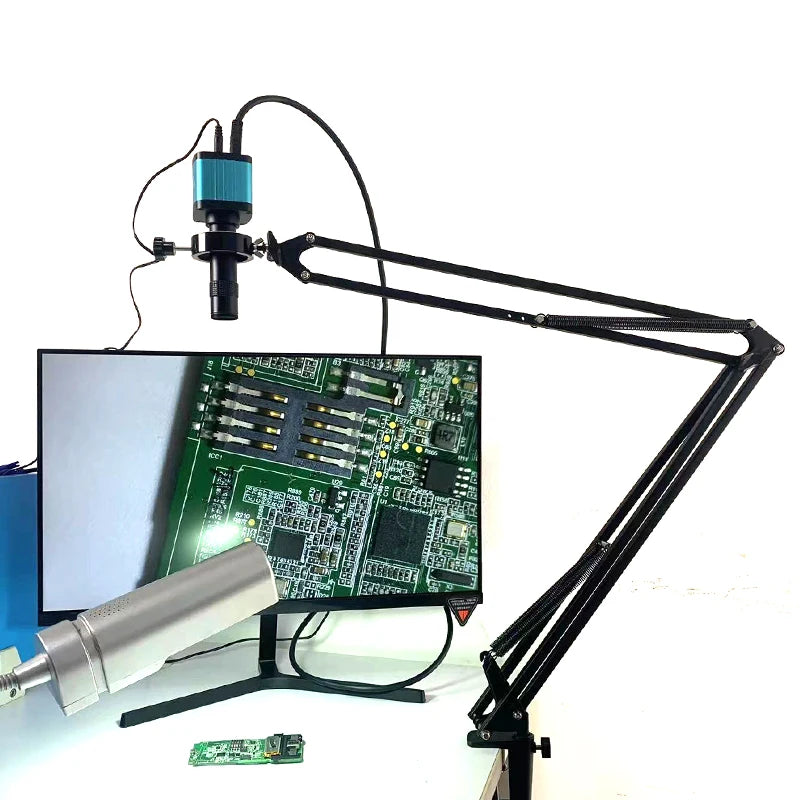

Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.Can also connect to PC.
Sensor :SONY IMX307 CMOS
Optical format:1/2.8 inch
Housing: Aluminium alloy
Interface:HDMI(Type A).USB(Type B).TF Card,USB Flash Drive
Image resolution:1080P
Video record resolution:1080p@30FPS
HDMI resoltion:1920*1080p 60FPS
HDMI scale:Support 4:3,16:9, screen
USB2.0(Drive free):1920*1080@30FPS1280*720@30FPS640*480@30FPS
TF card:MAX 64GB
USB Flash Drive:MAX 128GB
TF card or U disk format
Digital Zoom:1X-4X
White balance:One key white balance,Manual balance
AWB:WB color correction/Auto/Manual
Brightness:0-100%,Adjustable
Contrast:0-100%,Adjustable
Saturation:0-100%,Adjustable
Sharpness:1-5,Adjustable
Sharpness: 0-10,Adjustable
Noise reduction: 0-10,Adjustable
Avoid flicker: Auto or 50Hz 60Hz
Color:Black and White / color
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
IR remoter:Support
Power supply:12V 1A

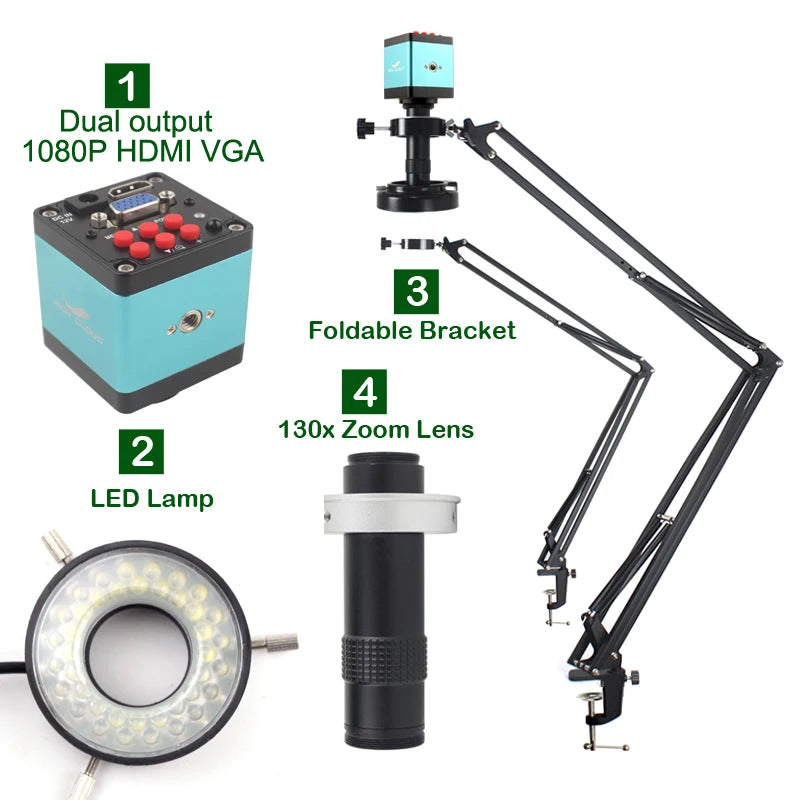

Specification:

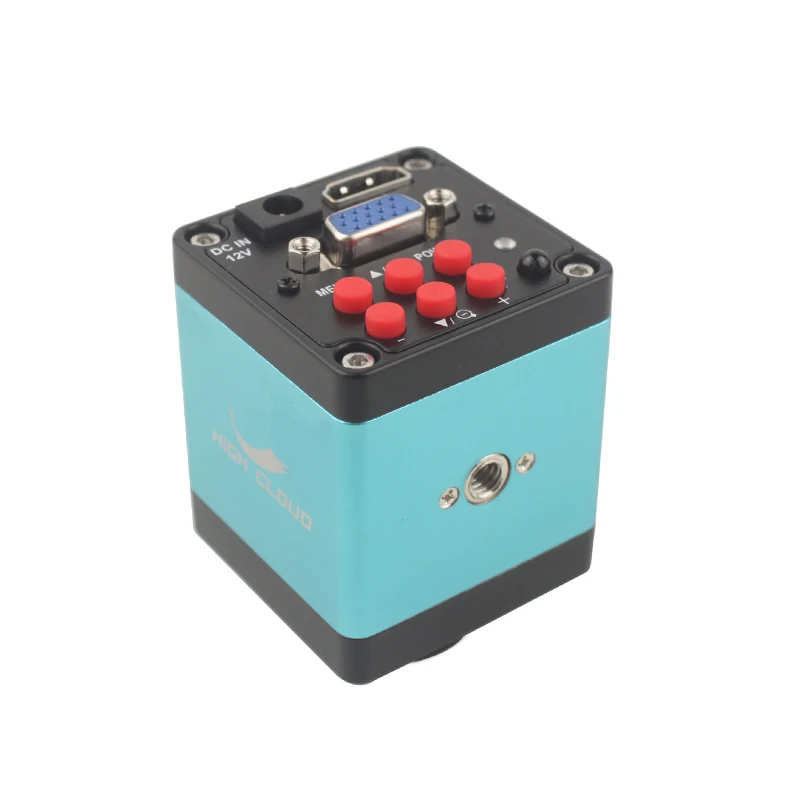

Model: Camera with HDMI VGA two output
Sensor: 1/3 inch 14MP
Image resolution: 1920* 1080 (for HDMI), 1920 *1080 (for VGA)
White Balance: Auto
Color: Color
Mirroring: Left/right,Up/Down
Light: Auto
Freeze: Support
Negative: Support
OSD: English/Chinese
Line: different color,8 horizontal line,8 vertical line,any positions
